Brand	ABB
Efficiency	IE3
Frame Size	100
Motor Designation	Process Performance - Aluminum Motor
Motor Poles	4
Mounting Method	Foot/flange-mounted, term. box top, IM B35, IM 2001
Rated Power (kW)	2.2
Colour	Blue
Connection Type	STAR - 240V in D & 415V in Y
Degree of Protection	IP55
Dimensions (mm)	505 X 240 X 385
Rated Voltage (V)	415Y/ 230D
Weight (kg)	39.04

Motors

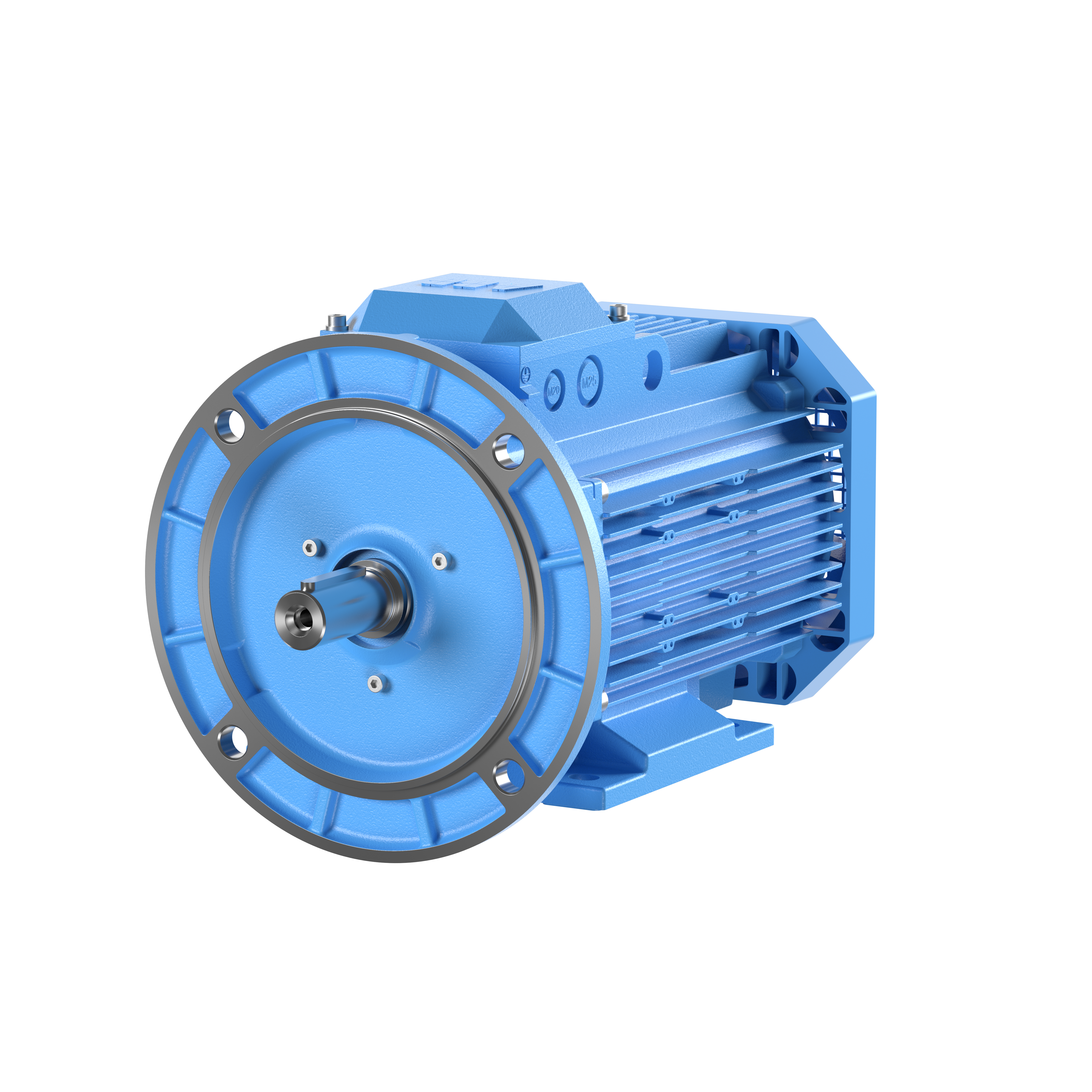

ABB IE3 ALUMINUM MOTOR 4P 2.2kW 400VY FOOT/BIG FLANGE MOUNT B35 IP55 M3AA100LE 3GAA102550-HSK
