Brand	ABB
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT4 Frame
Overload Release Current Setting (A)	64
Rated Instantaneous Short-Circuit Current - Ii (A)	160
S/I (1 to 10 x In) - I2/I3 (A)	160 - 1600
Tripping Unit	Ekip DIP LS/I
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	160
Degree of Protection	IP20
EAN	8015644695958
L (0.4 to 1 x In) - I1 (A)	64 - 160
No. of Poles	3
Poles	3P
Power Loss (W)	8.9
Rated Current (A)	160
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Size of Frame	XT4
Trip Unit	Ekip DIP LS/I
Trip Unit - Electronic	Ekip DIP LS/I

Moulded Case Circuit Breakers

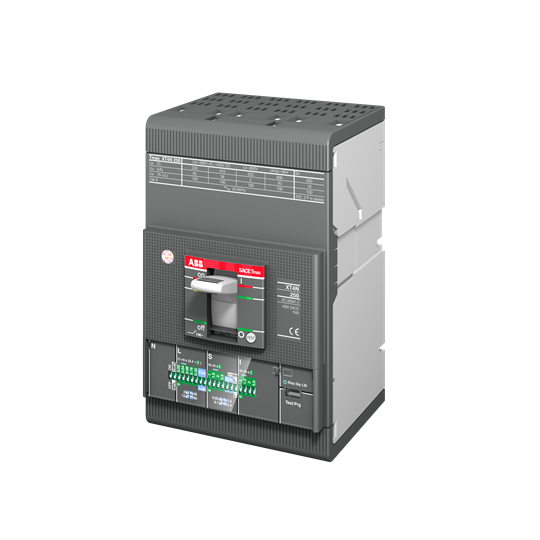

ABB XT4N 160 EKIP LS/I IN=160A 3P F F 1SDA068125R1
