Brand	ABB
Design of Control Element	Toggle
Magnetic - I3 (A)	500 - 1000
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT4 Frame
Overload Release Current Setting (A)	70
Rated Instantaneous Short-Circuit Current - Ii (A)	500
Thermal (0.7 to 1 x In) - I1 (A)	70 - 100
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Breaking Capacity (kA)	36
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	100
Degree of Protection	IP20
EAN	8015644019808
No. of Poles	3
Poles	3P
Power Loss (W)	6.24
Rated Current (A)	100
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Size of Frame	XT4
Trip Unit	TMA

Moulded Case Circuit Breakers

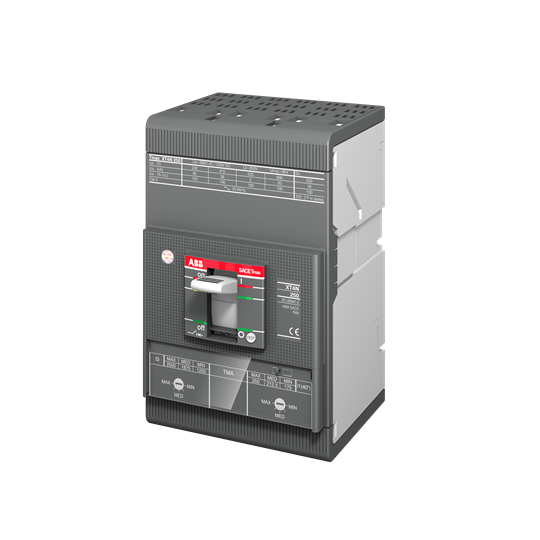

ABB XT4N 160 TMA 100-1000 3P F F 1SDA068087R1
