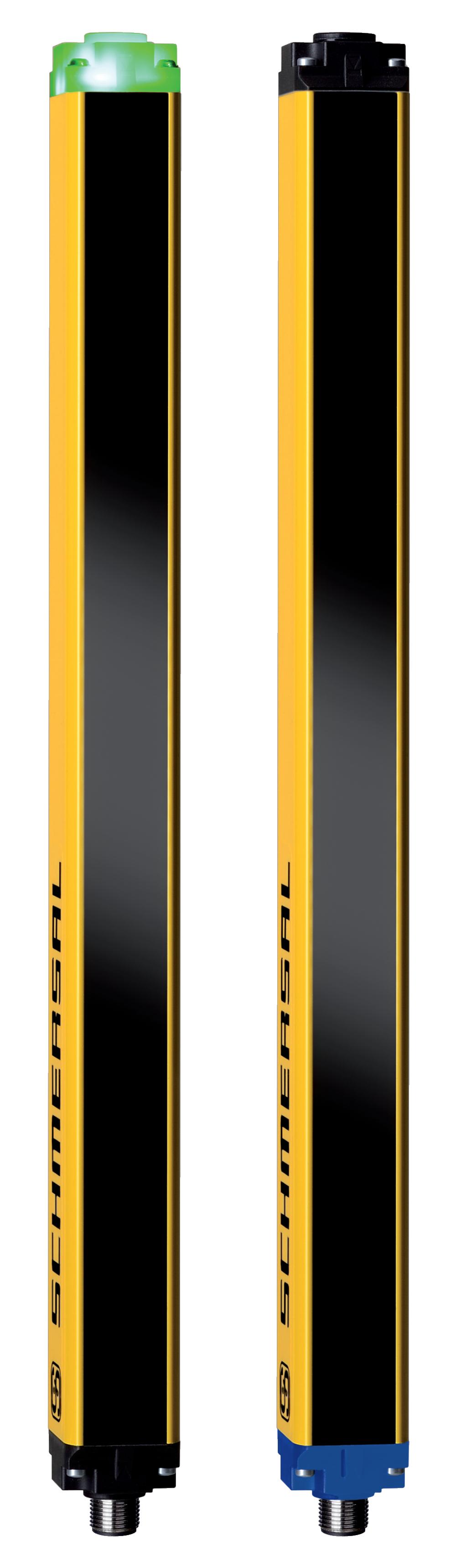

SCHMERSAL SLC440COM-ER-1050-14 SAFETY LIGHT CURTAIN 103003904

Product Code: 103003904

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for high-risk industrial environments, this robust safety solution features 104 beams and a fine detection ability of 14 mm, ensuring precise object recognition. The system boasts a protective field height of 1050 mm to safeguard a substantial vertical area. With integral system diagnostics and restart interlock functionality, it provides both proactive safety measures and ease of use in case of an interruption. This efficient unit requires only 24 VDC power supply while maintaining low energy consumption at 10 W. It comes equipped with two fail-safe digital outputs and utilizes a convenient connector terminal for straightforward installation. Trust in Schmersal's commitment to machine safety with these reliable light curtains, ideal for engineers seeking dependable protection without compromising on performance.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-26-02
eCl@ss Number, Version 9.0 27-27-26-02
ETIM 6.0 EC000030
ETIM 7.0 EC002593
Gross Weight (g) 1240
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -10
Net Weight (g) 1440
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Sensor Height (mm) 35
Sensor Length (mm) 16.6
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 50
Minimum Mechanical Life 1000000 Operations
Series SLC
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN ISO 14119
Terminal Type Screw terminals M20 x 1.5
