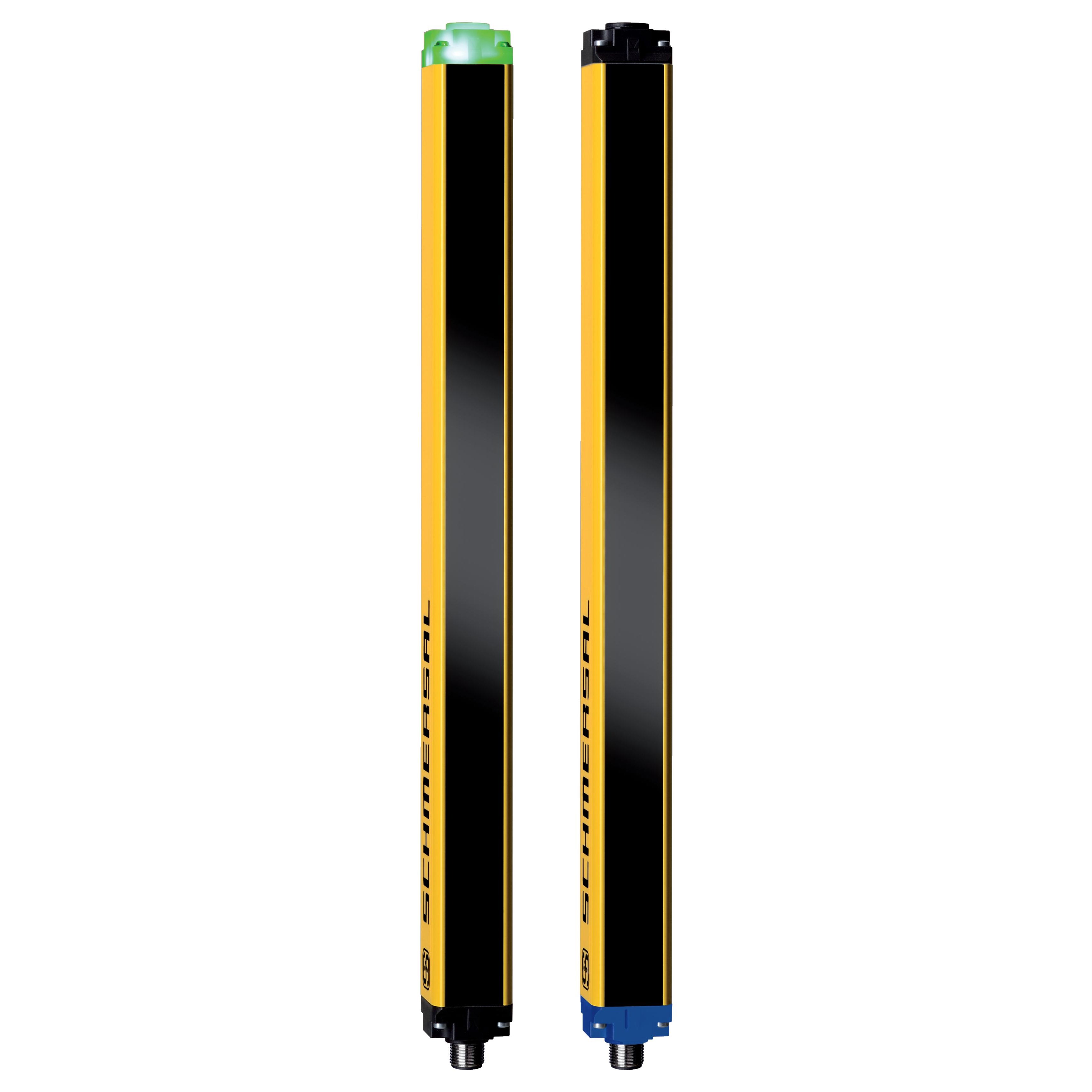

SCHMERSAL SLC440COM-ER-0890-14 SAFETY LIGHT CURTAIN 103003902

Product Code: 103003902

Enhance your machine safety with the Schmersal SLC Series Safety Light Curtains. Designed for reliability, this system features 88 beams and a detection ability of 14 mm, ensuring precise interruption detection. The protection field stands at a height of 890 mm, suitable for various applications. With integral system diagnostics and a restart interlock function, it ensures continuous safety monitoring and controlled access when needed. This unit is equipped with two fail-safe digital outputs and utilizes a convenient connector terminal for easy integration. Operating on a standard 24 VDC and with an electrical power consumption of just 10 W, it's an energy-efficient addition to your safety measures. Trust in Schmersal's commitment to machine safety with this robust light curtain solution.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-26-02
eCl@ss Number, Version 9.0 27-27-26-92
ETIM 6.0 EC002592
ETIM 7.0 EC002592
Gross Weight (g) 1040
Maximum Temperature (°C) 50
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -10
Net Weight (g) 1140
Nominal Power (W) 10
Rated Maximum Operational Voltage DC (V) 24
Sensor Height (mm) 220
Sensor Length (mm) 16.6
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Glass-fibre, reinforced thermoplastic
Maximum Ambient Temperature (°C) 50
Minimum Mechanical Life 1000000 Operations
Series SLC
Standards EN IEC 60947-5-1 / EN ISO 13849-1 / EN ISO 14119
Terminal Type Screw terminals M20 x 1.5
