SCHMERSAL BPS40S-2-C SAFETY SENSOR 101215267

Product Code: 101215267

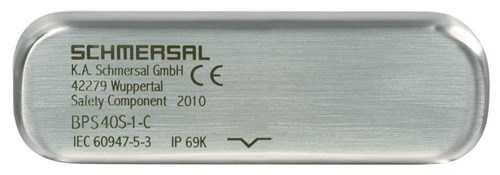

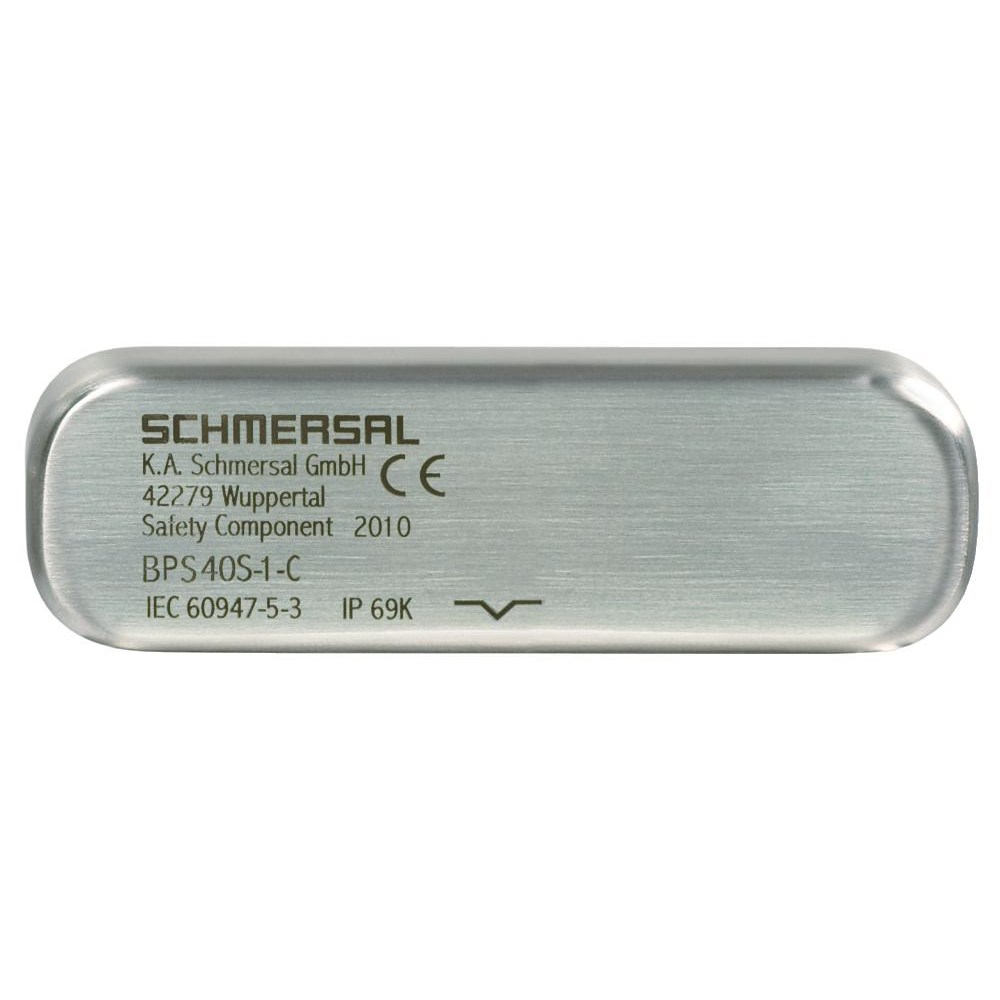

The Schmersal BPS40S is a robust safety sensor designed for machine safety applications, featuring a durable stainless steel (V4A) magnet enclosure with concealed threaded holes for easy installation. This sensor comes with an actuator that is 90 degrees attached, measuring 88 mm in length and 27 mm in width, ensuring reliable operation and integration into various safety systems. Part of the BPS40S series, this sensor is engineered to maintain high standards of safety and performance.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 27-27-01-05
eCl@ss Number, Version 9.0 27-27-06-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Gross Weight (g) 407.38
Minimum Ambient Temperature (°C) -20
Net Weight (g) 330
Sensor Height (mm) 179
Sensor Length (mm) 38
Thermal Test Current (A) 63
Utilisation Category AC-15 240 VAC
Utilisation Category DC-13 24 VDC
Degree of Protection IP20
EAN 4030660000000
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Maximum Ambient Temperature (°C) 80
Minimum Mechanical Life 20000000 Operations
Series BPS40S
Standards EN IEC 60947-5-1
Terminal Type Cage clamps
