SCHMERSAL A-K8P-M12-S-G-5M-BK-1-X-A-4-69-VA SAFETY SENSOR 101210560

Product Code: 101210560

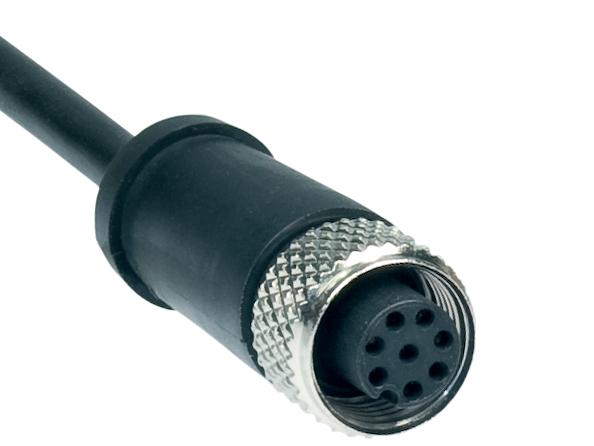

Enhance your machine safety with the Schmersal A-K8P-M12 safety sensor series, featuring a robust pre-wired cable designed for cable drag chain applications. This durable safety solution includes an 8-wire configuration and spans a length of 5 meters, terminating in a reliable M12 female connector. Ideal for integrating into your safety systems, this product ensures secure connections and consistent performance in demanding industrial environments.

Technical Specifications

Brand SCHMERSAL
eCl@ss Number, Version 11.0 19-21-04-02
eCl@ss Number, Version 9.0 27-37-12-43
ETIM 6.0 EC001029
ETIM 7.0 EC001029
Gross Weight (g) 840
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -10
Net Weight (g) 840
Sensor Height (mm) 103.5
Sensor Length (mm) 103
Utilisation Category AC-15 230 VAC
Utilisation Category DC-13 24 VDC
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Maximum Ambient Temperature (°C) 80
Minimum Mechanical Life 20000000 Operations
Series A-K8P-M12
Standards EN ISO 13849-1
Terminal Type Screw terminals M20 x 1.5
