SCHMERSAL AZM161-B1-2024 SOLENOID INTERLOCK 101178199

Product Code: 101178199

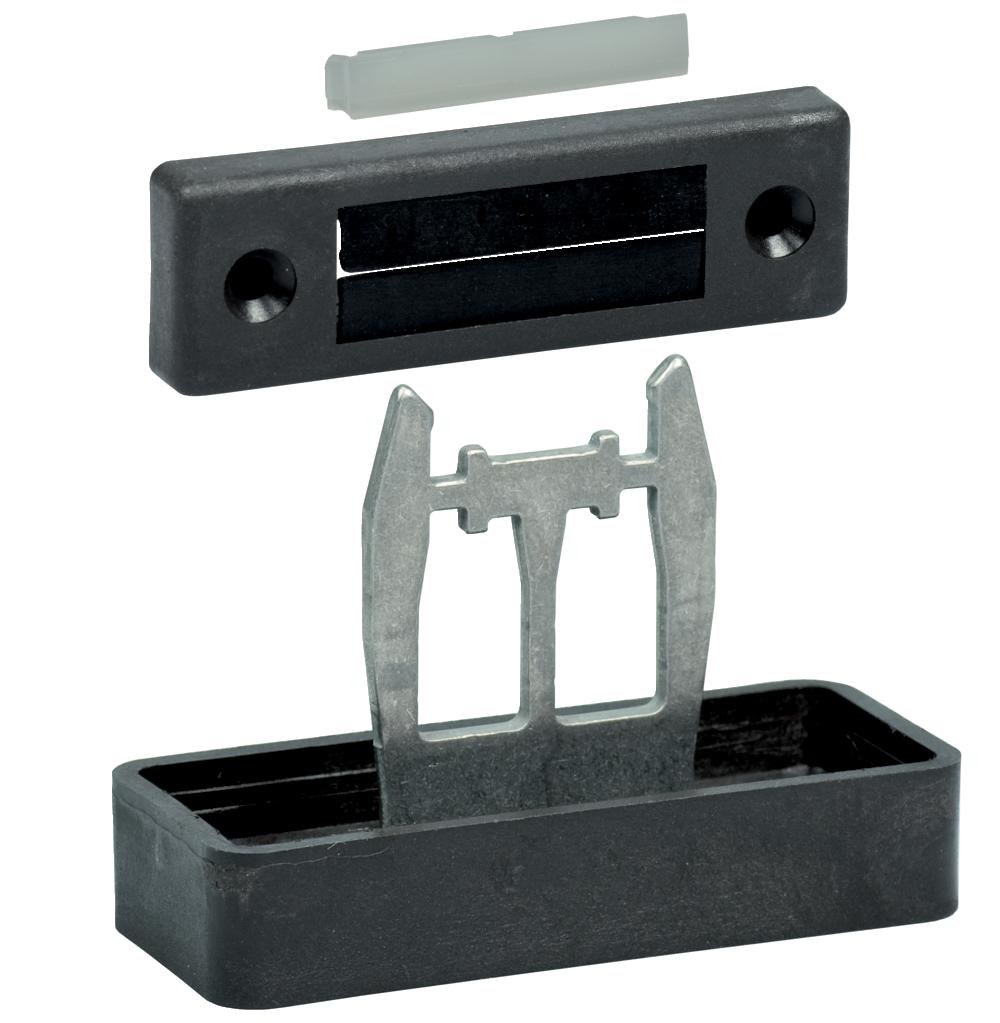

Enhance your machine safety with the Schmersal AZM161 Series Solenoid Interlocks, featuring a robust straight actuator designed with slot lip-seal and shutters. Constructed from durable V2A stainless steel, this rigid actuator ensures reliable operation in demanding industrial environments. Trust in Schmersal's commitment to safety and quality for your machinery interlock needs.

Technical Specifications

Brand SCHMERSAL
Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-26-01
eCl@ss Number, Version 9.0 27-27-26-01
ETIM 6.0 EC000030
ETIM 7.0 EC000030
Explosion Protection Category 3D | 3G
Gross Weight (g) 61.85
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse
Minimum Ambient Temperature (°C) -30
Net Weight (g) 65.12
No. of Safety Contacts 2
Rated Short-circuit Current (A) 100
Sensor Height (mm) 75.5
Sensor Length (mm) 30
Switching Element NO contact, NC contact
Switching Principle Slow action
Utilisation Category DC-13 | AC-15
Utilisation Category DC-13 2.5 A
Working Principle RFID
Actuator Type Roller lever N300
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Plastic, glass-fibre-reinforced
Maximum Ambient Temperature (°C) 70
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1 x 0.25
Minimum Mechanical Life 10000000 Operations
Rated Impulse Withstand Voltage (kV) 4
Rated Insulation Voltage (V) 500
Series AZM161
Standards EN IEC 60947-5-1 / EN ISO 14119
Terminal Type Screw terminals M20 x 1.5
