Brand	SCHMERSAL
Latching Force (N)	5
Maximum Actuating Speed (m/s)	2
Maximum Fuse Rating	4 A gG D-fuse
Maximum Holding Force (N)	1300
Maximum Storage Temperature (°C)	85
Minimum Ambient Temperature (°C)	-25
Minimum Positive Break Force (N)	17
Minimum Storage Temperature (°C)	25
No. of Actuating Directions	2
No. of Auxiliary Contacts	1
No. of Safety Contacts	2
Positive Break Travel (mm)	11
Rated Control Voltage AC/DC (V)	24
Rated Operational Current AC-15 (A)	Safety Contacts - 4A
Rated Operational Current DC-13 (A)	Safety Contacts - 4A
Rated Short-circuit Current (A)	1000
Release Type	Manual
Sensor Height (mm)	75.5
Sensor Length (mm)	30
Sensor Width (mm)	90
Switching Element	Opener (NC)
Switching Frequency	1000/h
Switching Principle	Slow Action
Termination	Connector Plug M12, 4-Pole, (A-coding)
Thermal Test Current (A)	4
Contact Material	Silver
Degree of Protection	IP67
Holding Force (N)	1000
Housing Material	Plastic, Glass-fibre Reinforced Thermoplastic, Self-extinguishing
Maximum Ambient Temperature (°C)	60
Minimum Mechanical Life	1000000 Operations
Power Consumption (W)	12
Rated Impulse Withstand Voltage (kV)	2.5
Rated Insulation Voltage (V)	250
Standards and Approvals	EN IEC 60947-5-1, EN ISO 13849-1

Safety Interlocks

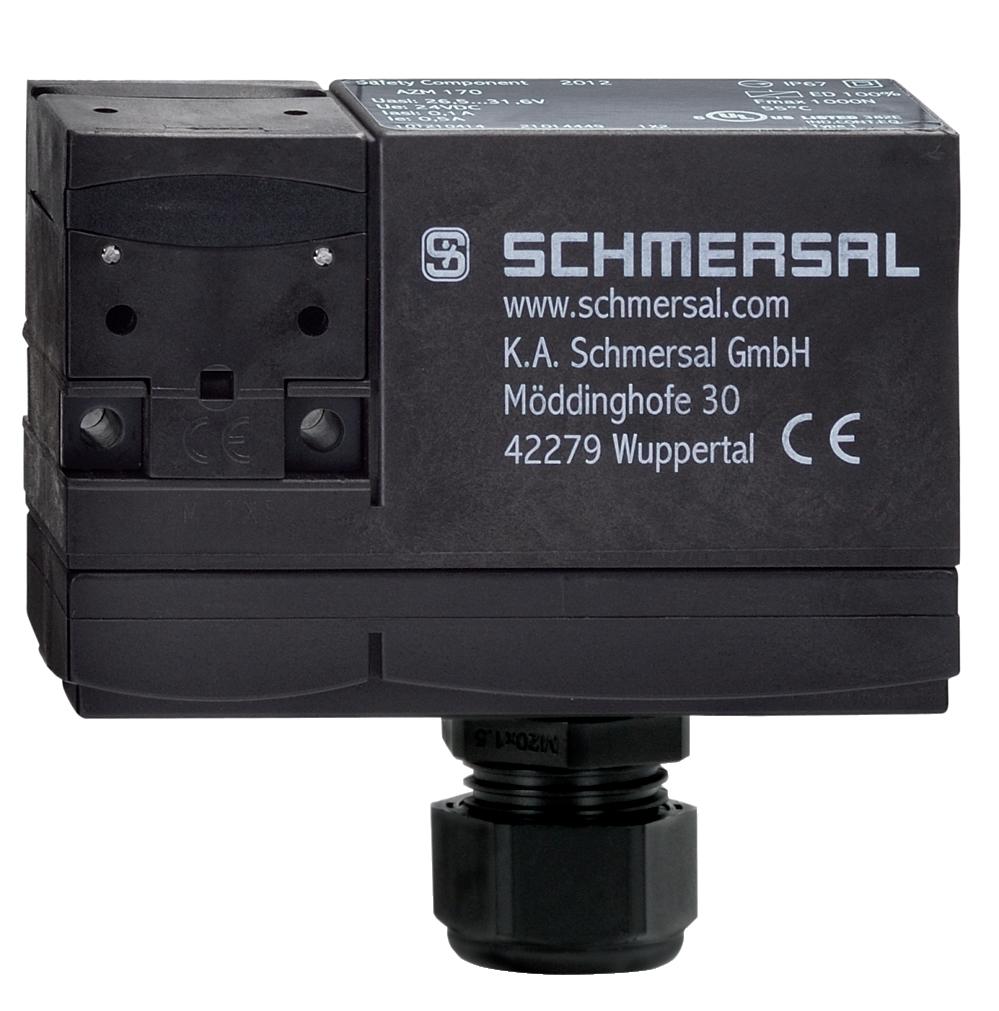

SCHMERSAL AZM 170-02ZKA-ST 24VAC/DCSOLENOID INTERLOCK 101176751
