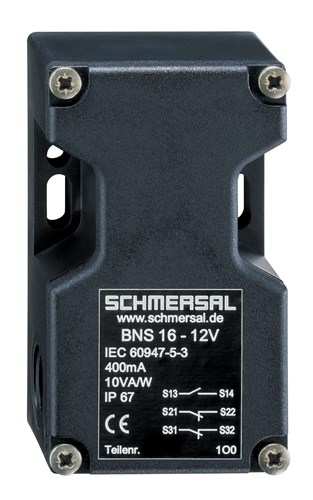

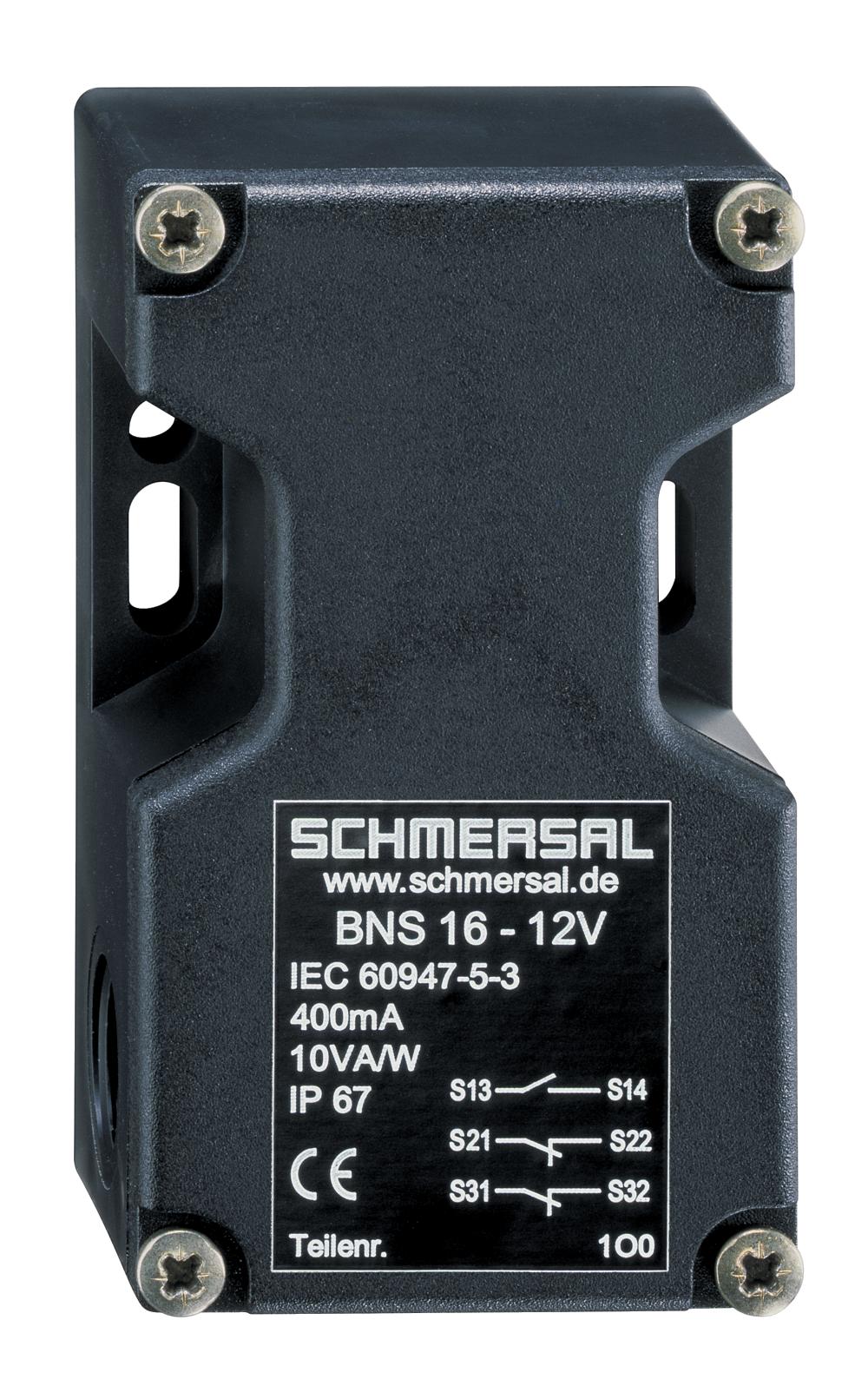

SCHMERSAL BNS16-12ZU SAFETY SENSOR 101172565

Product Code: 101172565

Enhance your machine safety with the Schmersal BNS16 series safety sensor, designed for reliability and durability. This thermoplastic-encased sensor features a magnetic actuating element and requires an evaluation unit to function. It is equipped with two openers and one shutter, ensuring secure operations. The bottom active area ensures precise detection, while the screw connection terminal connector offers a straightforward installation process. With a switching voltage of 100 V AC/DC and a current of 0.4 A, this sensor delivers a switching capacity of 10 W. Ideal for engineers seeking robust safety solutions in their machinery, the BNS16 stands out in the Machine Safety category for its efficiency and quality construction.

Technical Specifications

Actuator Type Offset roller lever K370
Enclosure Material Light alloy die-casting
Gross Weight (g) 180
Net Weight (g) 55
Maximum Temperature (°C) 70
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -25
Brand SCHMERSAL
Series BNS16
Working Principle Inductive
Housing Construction Form Block
EAN 4030660000000
eCl@ss Number, Version 9.0 27-27-27-04
ETIM 7.0 EC002549
ETIM 6.0 EC002549
eCl@ss Number, Version 11.0 27-27-27-04
Cable Note All indications including the conductor ferrules.
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2 x 2.5
Minimum Cable Cross Section (mm²) 0.75
Contact Material Silver
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A gG D-fuse quick blow
Minimum Mechanical Life 1000000 Operations
No. of Auxiliary Contacts 2
No. of Safety Contacts 2
Nominal Output Current (A) 0.4
Nominal Power (W) 10
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Rated Maximum Operational Voltage AC (V) 100
Rated Maximum Operational Voltage DC (V) 100
Rated Short-circuit Current (A) 1000
Switching Element Opener (NC)
Switching Principle slow action, positive break NC contact
Terminal Type Screw terminals M20 x 1.5
Utilisation Category DC-13 | AC-15
Sensor Length (mm) 124
Sensor Height (mm) 90
Degree of Protection IP67
Standards EN 81-20 / EN 81-50
