SCHMERSAL SE-P40-2500 SAFETY-RELATED TACTILE SENSOR 101172154

Product Code: 101172154

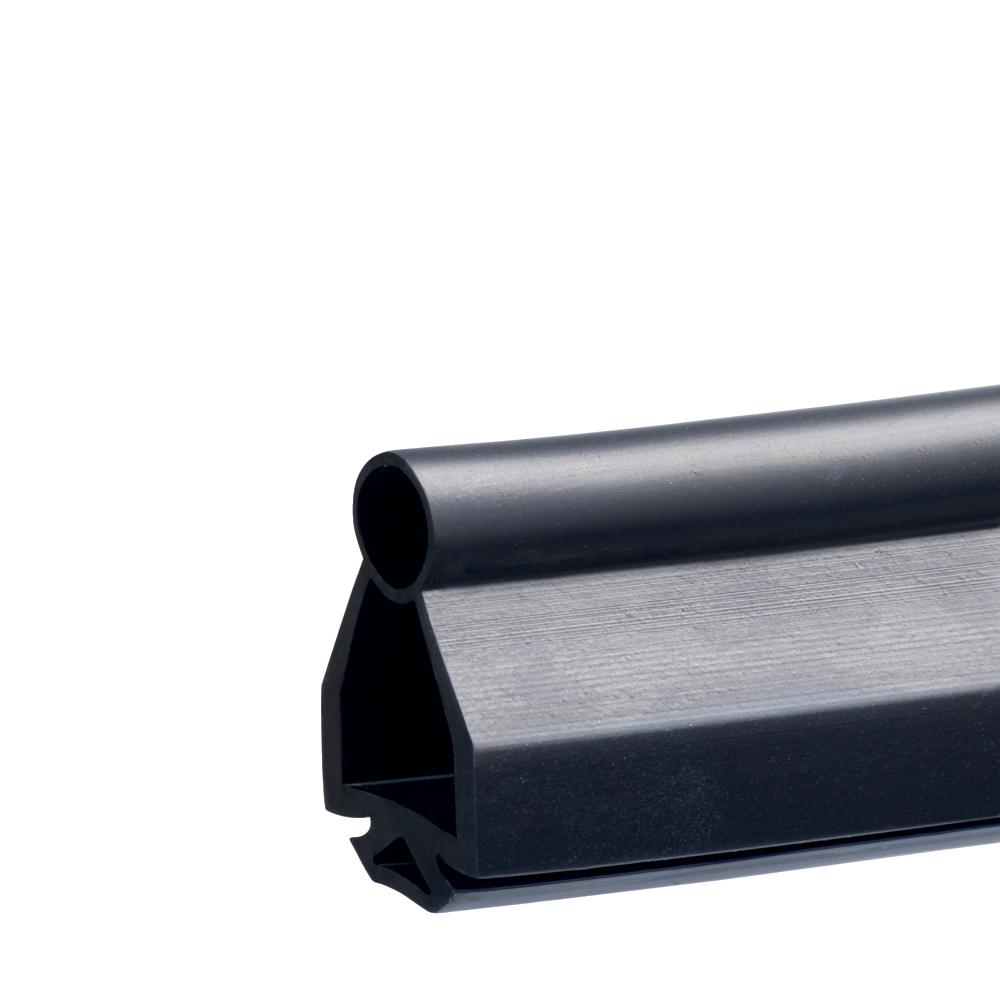

Ensure machine safety with the Schmersal SE-P40 safety edge, a robust safety-related tactile sensor designed for protection and accident prevention. Crafted from durable EPDM rubber with a hardness of 65 Shore A, this sensor measures 2,500mm in length, 25mm in width, and 40mm in height. The SE-P40 series is an essential component for any setup requiring reliable and responsive machine safety solutions.

Technical Specifications

Cable Note All indications including the conductor ferrules.
eCl@ss Number, Version 11.0 27-27-27-04
eCl@ss Number, Version 9.0 27-06-03-11
ETIM 6.0 EC002549
ETIM 7.0 EC000030
Gross Weight (g) 70
Housing Construction Form Block
Maximum Actuating Speed (m/s) 1
Maximum Fuse Rating 6 A (slow blow)
Maximum Temperature (°C) 170
Minimum Ambient Temperature (°C) -30
Minimum Temperature (°C) -50
Net Weight (g) 60
No. of Auxiliary Contacts 1
No. of Safety Contacts 1
Rated Short-circuit Current (A) 100
Sensor Height (mm) 121.5
Sensor Length (mm) 30
Switching Element NO contact, NC contact
Switching Principle Slow action with overlapping contacts
Utilisation Category DC-13 | AC-15
Working Principle Inductive
Brand SCHMERSAL
Actuator Type Offset roller lever K370
Contact Material Silver
Degree of Protection IP67
EAN 4030660000000
Enclosure Material Aluminium
Maximum Ambient Temperature (°C) 80
Maximum Cable Cross Section (mm²) 2.5
Minimum Cable Cross Section (mm²) 1 x 0.5
Minimum Mechanical Life 1000000 Operations
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 500
Series SE-P40
Standards EN 81-20 / EN 81-50
Terminal Type Screw terminals M20 x 1.5
