Cable Note |
All indications including the conductor ferrules. |
|
eCl@ss Number, Version 11.0 |
27-27-06-01 |
|
eCl@ss Number, Version 9.0 |
27-27-24-03 |
|
ETIM 6.0 |
EC000030 |
|
ETIM 7.0 |
EC000030 |
|
Gross Weight (g) |
3 |
|
Housing Construction Form |
Norm construction design |
|
Installation Conditions |
Arbitrarily |
|
Maximum Actuating Speed (m/s) |
1 |
|
Maximum Fuse Rating |
6 A gG D-fuse |
|
Maximum Switching Capacity (W) |
10 |
|
Maximum Temperature (°C) |
70 |
|
Minimum Actuating Speed (mm/min) |
120 |
|
Minimum Ambient Temperature (°C) |
-25 |
|
Minimum Positive Break Force (N) |
20 |
|
Minimum Temperature (°C) |
-25 |
|
Net Weight (g) |
140 |
|
No. of Auxiliary Contacts |
2 |
|
No. of Safety Contacts |
1 |
|
Nominal Output Current (A) |
0.01 |
|
Nominal Power (W) |
0.2 |
|
Protection Class of Operating Resource |
3 |
|
Rated Maximum Operational Voltage DC (V) |
24 |
|
Rated Operating Current (mA) |
50 |
|
Rated Short-circuit Current (A) |
1000 |
|
Recommended Safety Switchgear |
PROTECT PSC1 | SRB-E-301ST | SRB-E-201LC |
|
Resistance to Shock (g/ms) |
30 / 11 |
|
Sensor Height (mm) |
133 |
|
Sensor Length (mm) |
30 |
|
Switching Element |
1 NO contact, 2 NC contacts |
|
Switching Principle |
Slow action |
|
Utilisation Category |
DC-13 | AC-15 |
|
Utilisation Category AC-15 |
2.5 A |
|
Utilisation Category DC-13 |
0.05 A |
|
Wire Cross-Section |
0.34 mm |
|
Working Principle |
Magnetic drive |
|
Brand |
SCHMERSAL |
|
Actuator Type |
Magnet |
|
Contact Material |
Silver |
|
Degree of Protection |
IP67 |
|
EAN |
4030660000000 |
|
Enclosure Coating Material |
Painted |
|
Enclosure Material |
Aluminium |
|
Height (mm) |
69 |
|
Maximum Ambient Temperature (°C) |
80 |
|
Maximum Cable Cross Section (mm²) |
2.5 |
|
Minimum Cable Cross Section (mm²) |
0.34 |
|
Minimum Mechanical Life |
1000000 Operations |
|
Mounting Type |
Snaps onto standard DIN rail to EN 60715 |
|
Overvoltage Category |
3 |
|
Pollution Degree |
2 |
|
Rated Impulse Withstand Voltage (kV) |
6 |
|
Rated Insulation Voltage (V) |
400 |
|

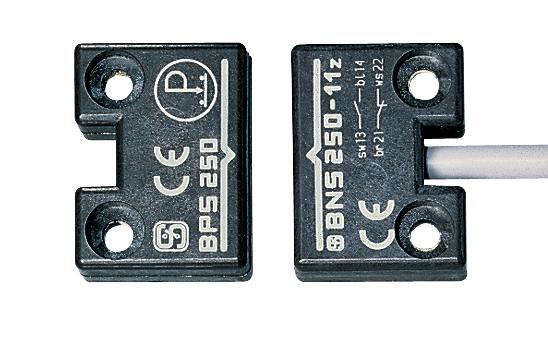

Series |
BNS250 |
|
Standards |
EN IEC 60947-5-3 / BG-GS-ET-14 |
|
Storage Temperature (°C) |
25 to 85 |
|
Terminal Type |
Connector |
|
Width (mm) |
22.5 |
