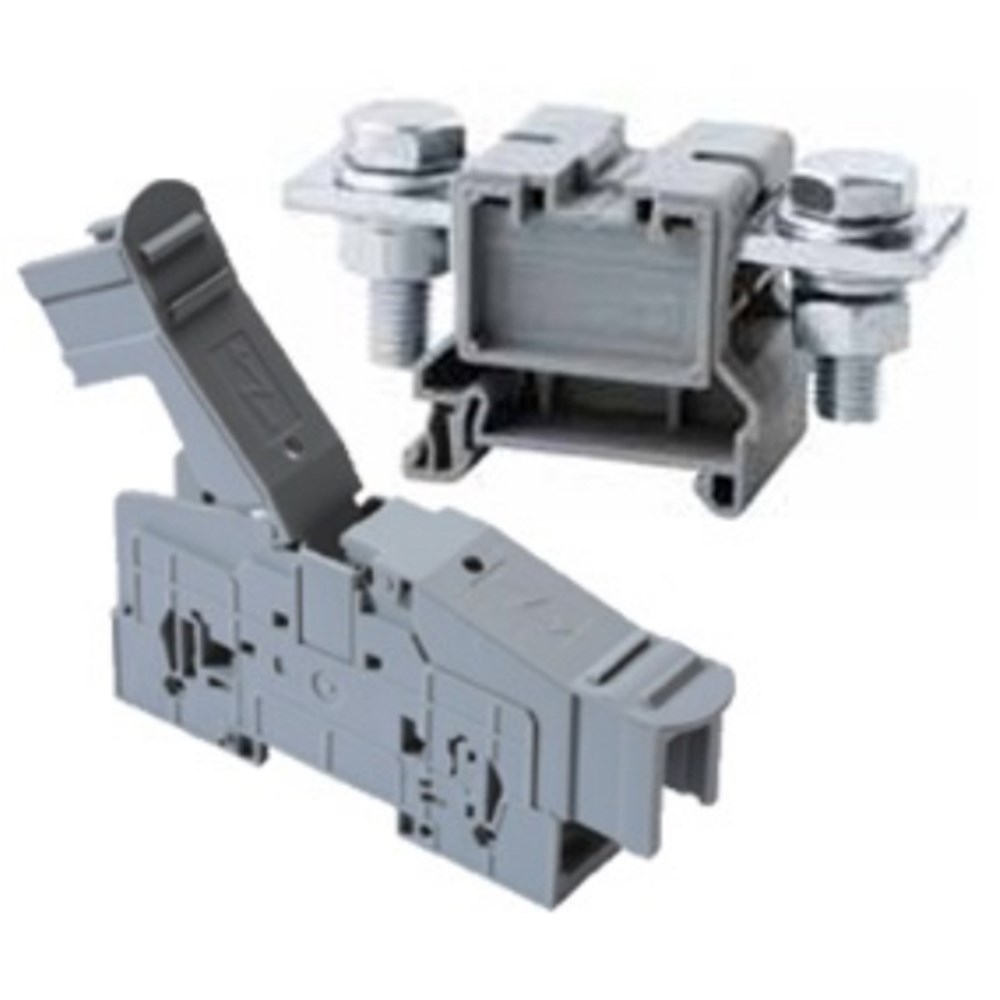

CONNECTWELL CBB95 POWER TERMINAL BLOCK LUG CONNECTION 16-95mm² 1000V/232A

Product Code: CBB95

Power terminal block with lug connection for stranded conductors ranging from 16mm² to 95mm². It has dimensions of 92mm in length, 38mm in width, and 47.3mm in height. The terminal block is coloured grey and can handle a feed through of 1000V/232A. It also has the possibility for M10 size bolt mounting on both DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 16 - 95
Dimensions (mm) 92L x 38W x 47.3H
Mounting Type DIN Rail
Rated Current (A) 232
Rated Voltage (V) 1000
Screw Size M10
Tightening Torque (Nm) 10
