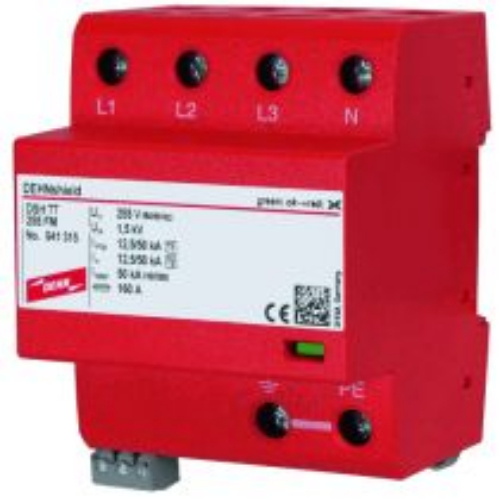

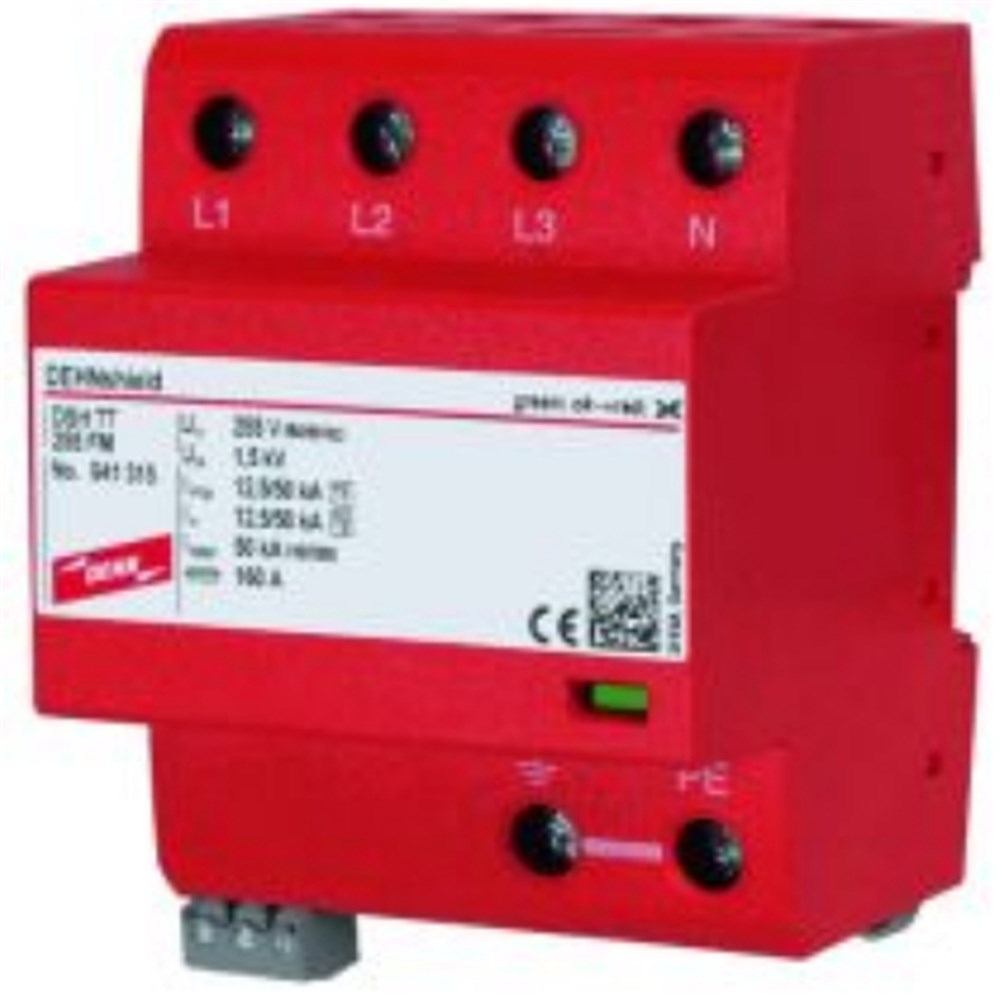

DEHN APPL.-OPT. COMBINED ARRESTER DEHNSHIELD TYPE 1+2 F. 3-PHASE TT A. TN-S SYSTEMS DSHTT255FM

Product Code: DSHTT255FM

Application-optimised multipole DEHNshield spark-gap-based type 1 and type 2 combined lightning current and surge arrester (according to EN 61643-11). Compact design due to space-saving spark gap technology with a width of only 1 module / pole. For use in residential buildings and special applications (see brochure DS193). For protecting low-voltage consumer's installations against surges, even in case of direct lightning strikes.

Technical Specifications

Brand DEHN
Article No. 941315
Circuit Type MSB
Degree of Protection IP20
Dimensions (mm) 0.09W x 0.12L x 0.09D
Follow Current Extinguishing Capability AC (kArms) 25 (L-N)
Integral Fuse No
Lightning Impulse Current (10/350 µs) - Iimp (kA) 12.5 (L-N)/50 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 255
Mounting Type DIN Rail
No. of Modules 4
No. of Poles 4P+PE
Nominal Discharge Current (8/20µs) - In (kA) 12.5 (L-N)/50 (N-PE)
Nominal Voltage AC (V) 230/400
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 100
Signal C/O Contact Yes
Total Discharge Current (10/350 µs) - Itotal (kA) 50 (L1+L2+L3+N-PE)
Voltage Protection Level - Up (kV) ≤ 1.5
Weight (kg) 0.51
