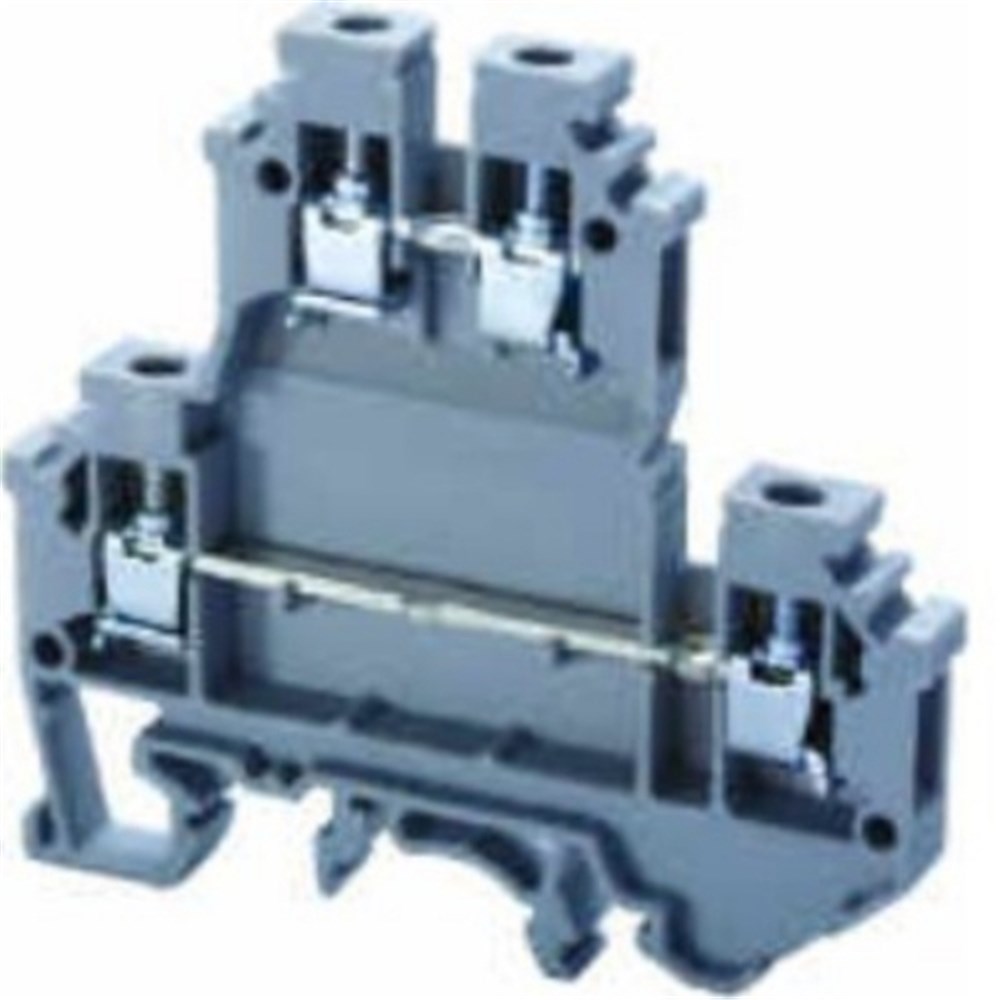

CONNECTWELL ODL4U DOUBLE LEVEL TERMINAL BLOCK SCREW CLAMP 0.2-4.0mm²

The double level terminal block is designed with a screw clamp to securely connect conductors. It is suitable for stranded conductors with a cross section ranging from 0.2mm² to 4.0mm². The terminal block has dimensions of 68mm in length, 6mm in width, and 65mm in height. It comes in a grey colour. With a voltage rating of 800V and a current rating of 32A, this terminal block is capable of handling high power applications. It features feed through functionality, allowing for easy connection on both the top and bottom levels. One unique feature of this terminal block is that the top level is offset from the bottom level, providing flexibility in mounting options. It can be mounted on DIN 32, DIN 35, and DIN 35-15 rails. Overall, this double level terminal block offers secure and efficient electrical connections for various applications.
