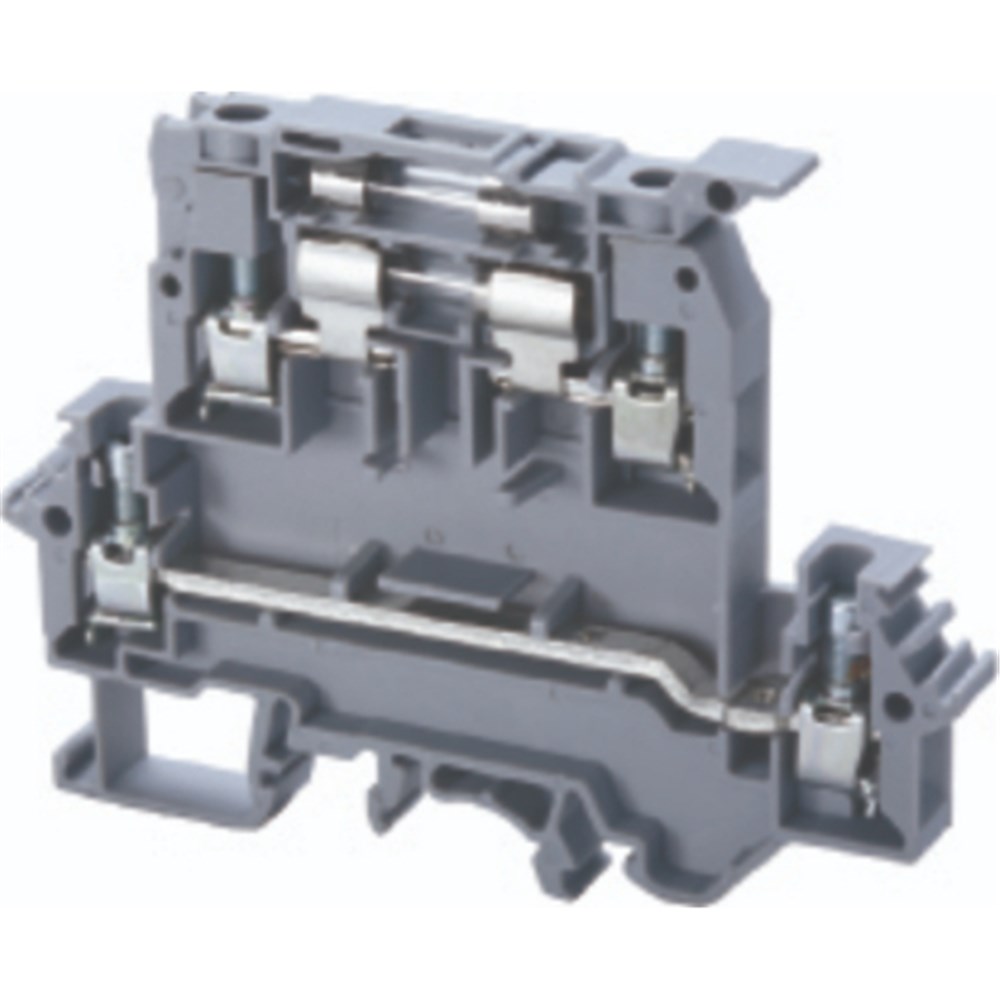

CONNECTWELL DDFL4U DOUBLE LEVEL FUSE TERMINAL BLOCK SCREW CLAMP 0.25 - 4mm² 800V/6.3A TOP LEVEL

The Double Level Fuse Terminal Block Screw Clamp is designed for use with stranded conductors. It has a conductor cross section range of 0.25 - 4mm². The terminal block has dimensions of 88mm (L) x 8mm (W) x 67.4mm (H) and comes in a grey colour. At the top level, the terminal block can handle a voltage of 800V and a current of 6.3A. At the bottom level, it can handle a voltage of 800V and a current of 32A. The terminal block is equipped with both 5 x 20mm and 5 x 25mm fuse link terminals. It features a top-level fuse terminal and also allows for feed-through bottom-level mounting. It is compatible with DIN 32, DIN 35, and DIN 35-15 rail systems.
