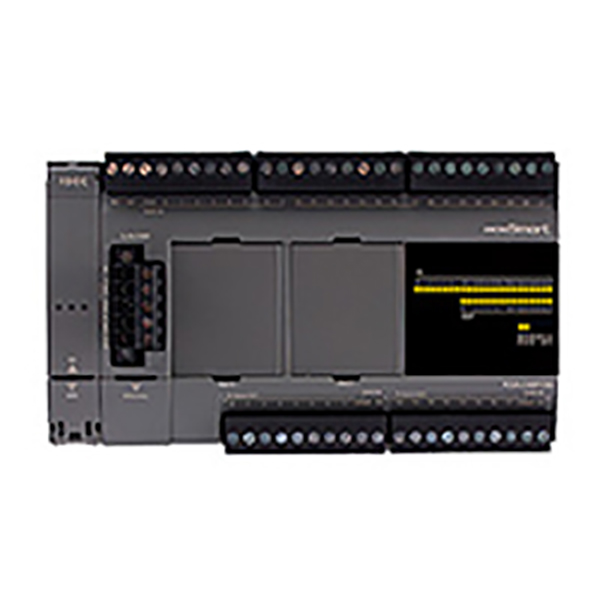

IDEC 40IO J1939 CPU 24V DC SOURCE MICRO SMART PLC FC6A-C40P1CEJ

Product Code: FC6A-C40P1CEJ

The IDEC FC6A-C40P1CEJ MicroSmart PLC is a robust controller designed for complex automation tasks. It features 40 I/O with J1939 support, 24VDC power supply, and transistor sink outputs. This unit includes an embedded SD memory port for expanded storage, Modbus TCP and RTU capabilities, and selectable RS232C/RS485 communication options. With data logging and web server functions, it offers comprehensive control and monitoring. The large programming and data memory ensure ample space for your applications, while the cULus CE Class 1 Div 4 certification guarantees safety in hazardous locations.

Technical Specifications

Maximum Analog Inputs 126
Maximum Digital Inputs 250
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 24
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 20.4 to 28.8
Voltage Range AC (V) 85 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 84.3D
Operational Temperature Range (°C) -25 to 65
Power Consumption (W) 4.2
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 480
