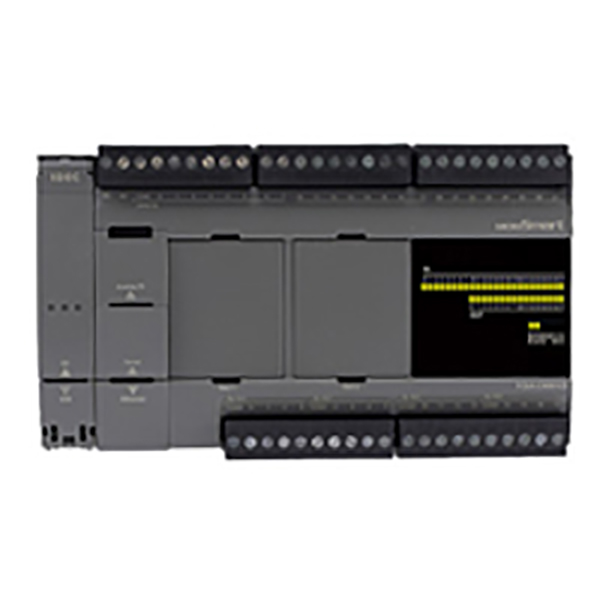

IDEC CPU 24VDC TRANSISTOR SOURCE MICRO SMART PLC FC6A-C40P1CE

Product Code: FC6A-C40P1CE

The IDEC FC6A-C40P1CE MicroSmart PLC is a compact and powerful controller designed for industrial applications. It features 40 I/O with J1939 support, operates on 24VDC, and provides transistor sink output for precise control. This PLC includes an embedded SD memory port, Modbus TCP and RTU capabilities, and selectable RS232C/RS485 communication options. Advanced functions such as data logging and web server capabilities are integrated, along with substantial programming and data memory space. It meets cULus CE Class 1 Div 4 standards for safety and reliability in demanding environments.

Technical Specifications

Maximum Analog Inputs 126
Maximum Digital Inputs 520
No. of Ethernet Ports 1
No. of Inputs 24
No. of Outputs 16
Operating Voltage DC (V) 24
Programming Language Ladder, Script
Timer Function 1024
Voltage Range (DC) 20.4 to 28.8
Voltage Range AC (V) 85 to 264
Brand IDEC
Dimensions (mm) 106.5W x 163H x 75.7D
Operational Temperature Range (°C) -25 to 65
Power Consumption (W) 5
Rated Frequency (Hz) 50/60
Warranty Period (Months) 36
Weight (g) 480
