DIN Rail Mounting	DIN 32/DIN 35/DIN 35-15 Rail
Operator Type	Screwdriver
Wire Entry	Side Entry
Brand	CONNECTWELL
Connecting Capacity	Conductor Cross Section Stranded 0.2 - 4mm² Conductor Cross Section Stranded with Ferrule/Lug 0.2 - 4mm² 2 Conductors with Same Cross Section 0.2 - 2.5mm² Conductor Cross Section Solid 0.2 - 6mm²
Colour	Grey
Conductor Cross Section (mm²)	0.2 (min), 4 (max)
Conductor Cross Section - Stranded (mm²)	4
Degree of Protection	IP66
Dimensions (mm)	6W x 70.8H x 52D
Function	Feed Through
Height (mm)	63.4
Housing Material	Polyamide
Length (mm)	52
Material	Polyamide
Mounting Type	DIN rail
Pack Quantity	50
Pollution Degree	3
Rated Current (A)	32
Rated Voltage (V)	1000
Screw Size	M3
Surge Voltage (kV)	8
Tightening Torque (Nm)	0.5
Width (mm)	6
Wire Stripping Length (mm)	12

Spring Loaded & Clamp Terminal Blocks

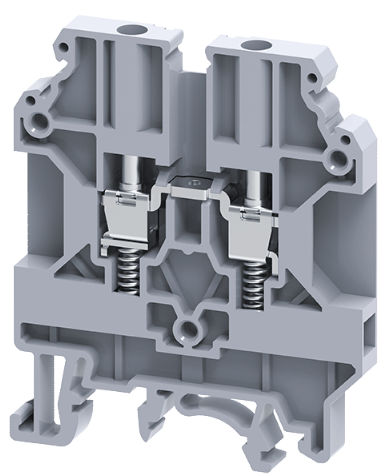

CONNECTWELL 4 MM "U" SERIES TERMINAL BLKGREY COLOUR - SCREW CONNECTIONWITH SAFETY SPRING CTS4USC
