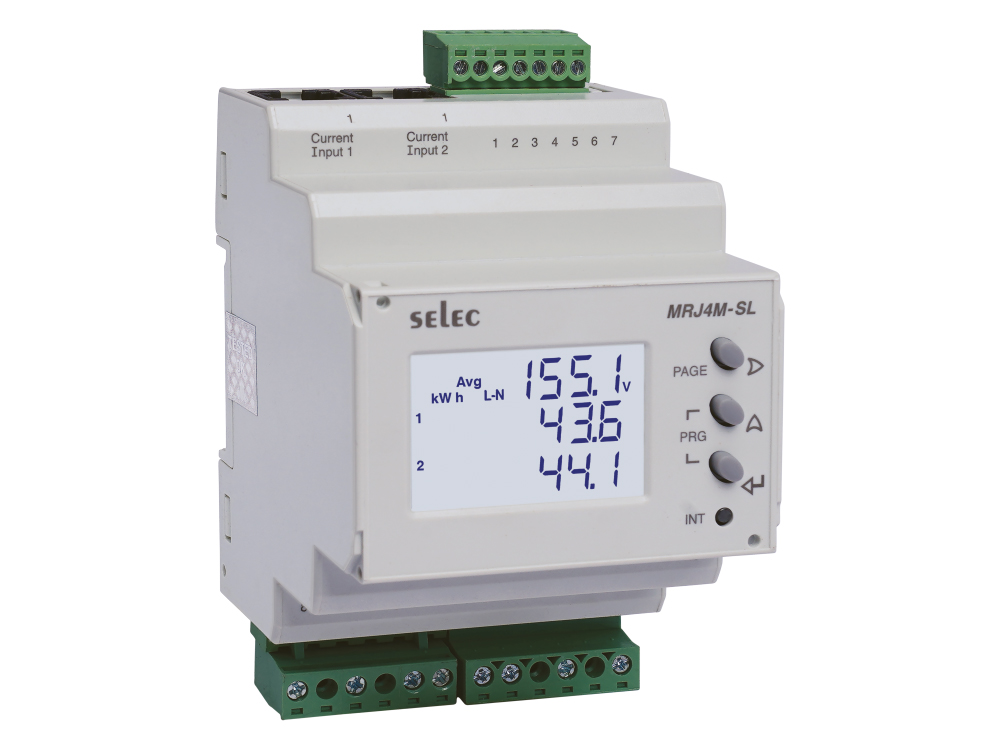

KWH METER DUAL-CHANNEL THREE THREE PHASE DIN RAIL MOUNT RS485 MODBUS RTU SELEC

Product Code: MRJ4M-SL

Brand	SELEC
Frequency (Hz)	45 to 65Hz
No. of Outputs	2 x Pulse Output
Power Factor	±0.01
Relative Humidity	0 to 85%, Non-condensing
Response Time (ms)	100ms (max and independent of baud rate)
Size (mm)	90 X 70
Voltage Range	60 to 300V AC (L - N) 104 to 520V AC (L - L)
Communication Protocols	MODBUS RTU
Accuracy	Class 1
Communication Interface	RS485
Display Screen Type	LCD with Backlight
Mounting Type	Din Rail Mount
No. of Phases	3Ø - 4 wire, 1Ø - 2 wire
Operational Temperature Range (°C)	–10°C to +55°C
Rated Supply Voltage AC (V)	60 to 300
Storage Temperature Range (°C)	–20°C to +75°C
Weight (g)	200
