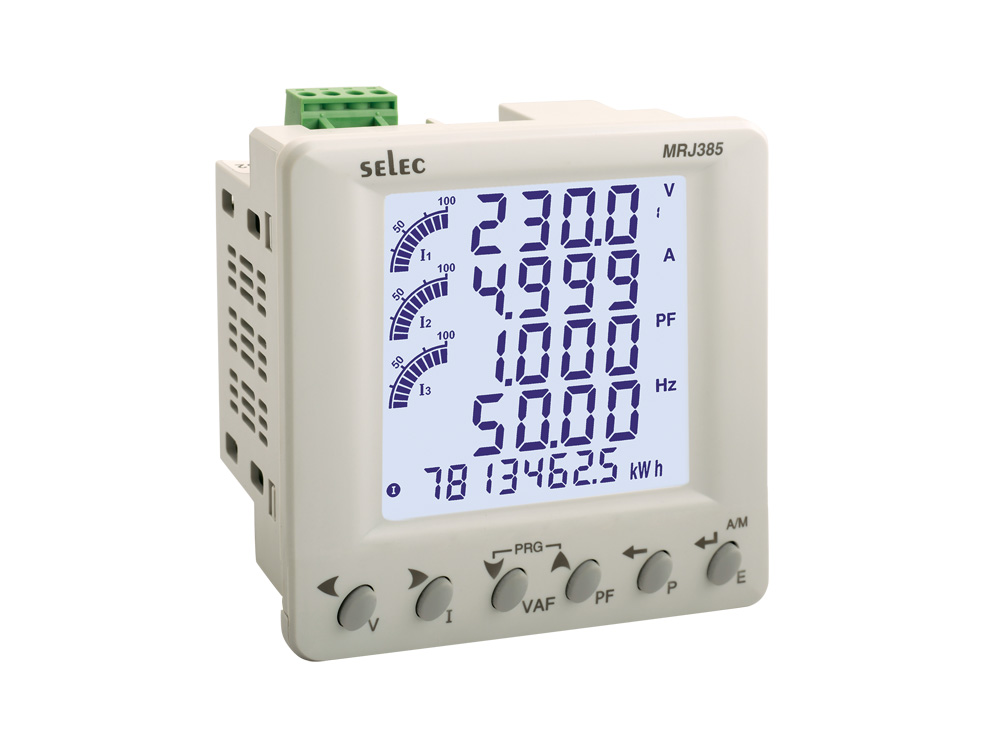

KWH METER THREE-PHASE PANEL MOUNT 96X96MM RS485 MODBUS RTU 100-240VAC SELEC

Product Code: MRJ385-G-PNW

No. of Meters	32 (up to 255 with RS485 repeater)
Brand	SELEC
Frequency (Hz)	50
Housing Style	DIN96
No. of Outputs	Pulse Output
Nominal Current Per Input (A)	RJ45 - 1A
Power Factor	1% of unity
Rated Insulation Voltage	300V (L - N)
Relative Humidity	0 to 85%, Non-condensing
Response Time (ms)	≤100ms
Size (mm)	96 X 96
Starting Current (A)	0.002 (0.66mV)
Voltage Range	100 to 240V (L - N), 173 to 415V AC(L-L)
Withstand Voltage AC (V)	4kV 50Hz for 1 min
Communication Protocols	MODBUS RTU
Accuracy	Class 1
Communication Interface	RS485
Degree of Protection	IP20 (terminals), IP54 (front of housing)
Display Screen Type	LCD With Backlight, Bargraph Representation for Current
Housing Material	Self-extinguishing polycarbonate (UL94 V-0)
Mounting Type	Panel Mount
No. of Phases	Single phase (CT on L1 only), Three phase four wire
Operational Temperature Range (°C)	–10°C to +55°C
Pollution Degree	2
Rated Supply Voltage AC (V)	60 to 300
Storage Temperature Range (°C)	–20°C to +70°C
Weight (g)	<240g
