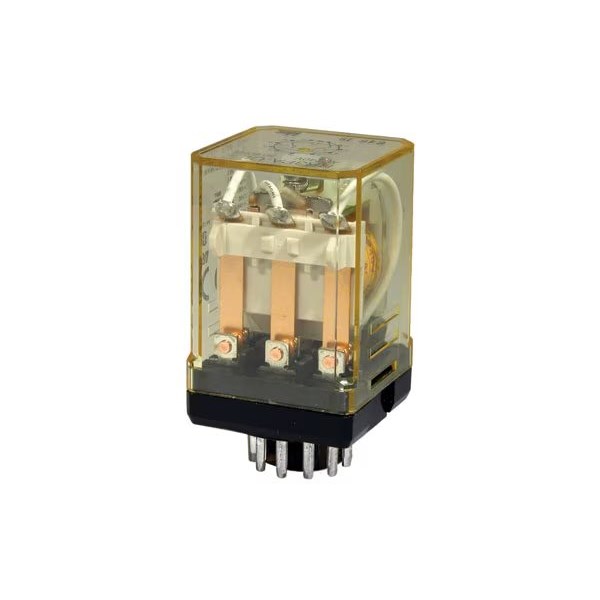

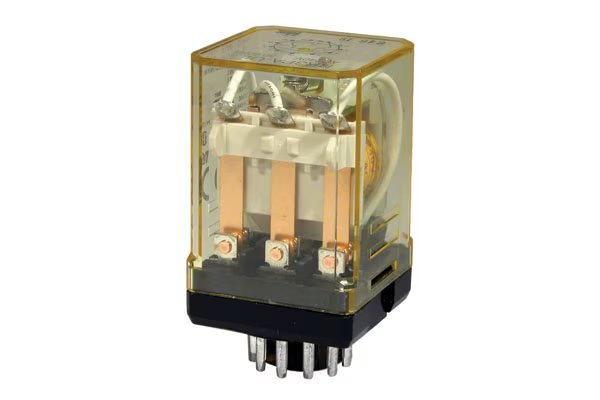

IDEC 3PDT PIN RELAY - US TERMINAL RELAY RR3PA-UCDC24V

Product Code: RR3PA-UCDC24V

The IDEC RR3PA-UCDC24V is a 3PDT pin relay designed for robust performance and high reliability, ensuring a long service life. It comes with worldwide approvals including UL, CSA, TUV, and CE on its octal models. This relay features a check button for test operations and an indicator light for status visualization. Versatile mounting options are available such as flange mounting, DIN socket, or panel mount socket to suit various installation requirements.

Technical Specifications

Brand IDEC
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage DC (V) 24
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 35.6W x 68.5H x 35.6D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model Basic
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 96
