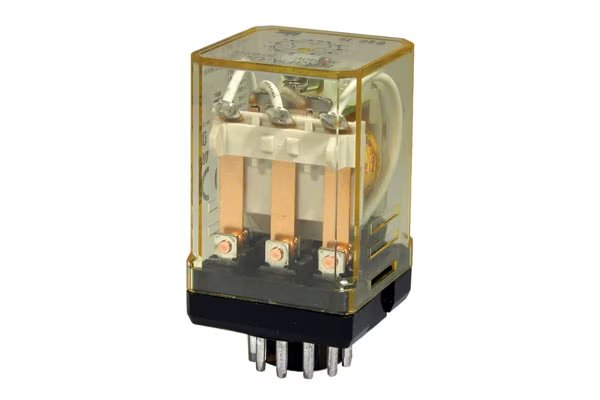

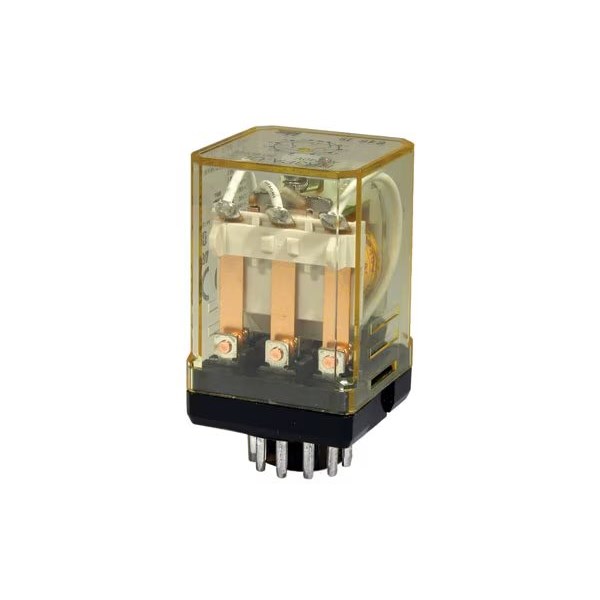

IDEC 3PDT PIN RELAY - US TERMINAL RELAY RR3PA-UAC48V

Product Code: RR3PA-UAC48V

The IDEC RR3PA-UAC48V is a 3PDT pin relay designed for robust performance with high reliability and an extended service life. This relay boasts worldwide approvals, including UL, CSA, TUV, and CE certifications for its octal models. It features a check button for convenient test operations and an indicator light for status monitoring. Versatile mounting options are available such as flange mounting, DIN socket, or panel mount socket to suit various installation requirements.

Technical Specifications

Brand IDEC
Operating Time 25ms
Resistance to Shock (m/s²) 100
Resistance to Vibrations 10 to 55Hz
Terminal Shape Pin Terminal
Coil Voltage AC (V) 48
Contact Material Silver
Contacts 3PDT
Dimensions (mm) 35.6W x 68.5H x 35.6D
Insulation Resistance (MO) 100
Minimum Electrical Life 200,000
Minimum Mechanical Life 10,000,000
Model Basic
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 40
Weight (g) 96
