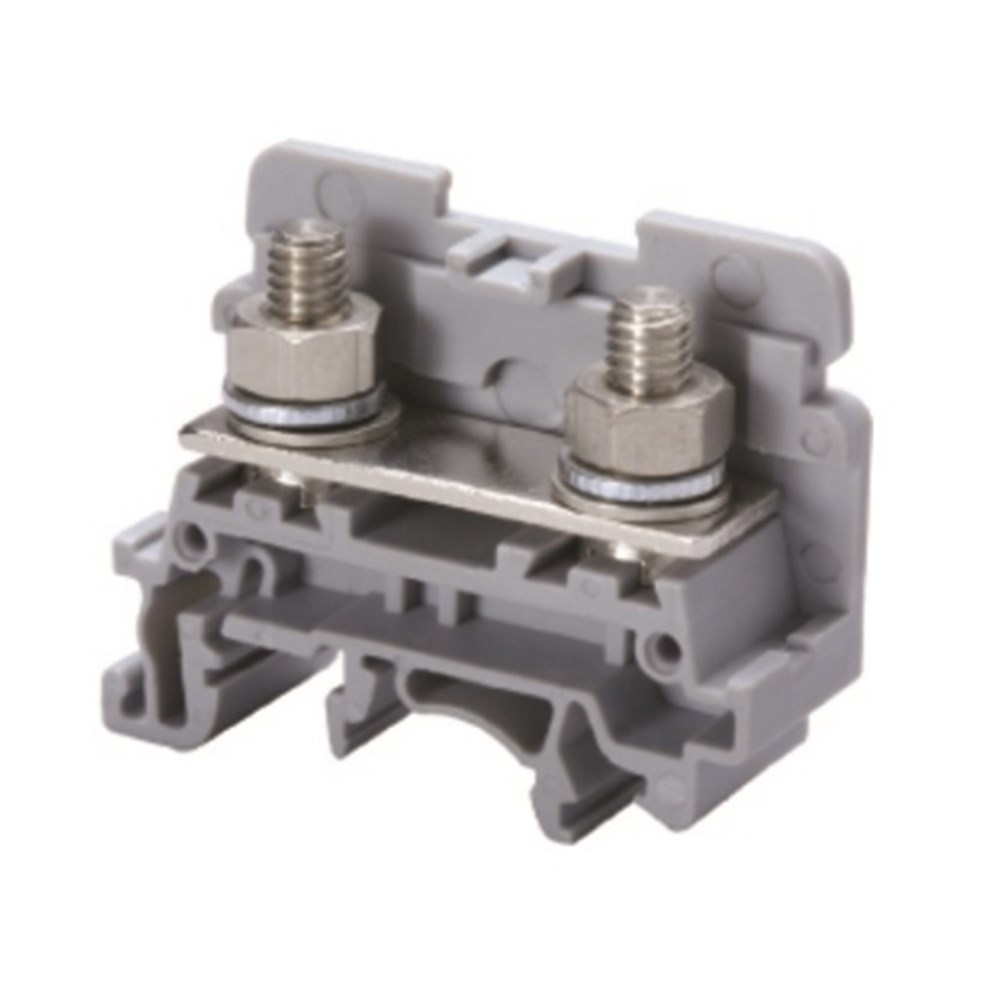

CONNECTWELL CSTSN6U HINGE TYPE STUD TERMINAL BLOCK LUG CONNECTION 1.5-35mm² 1000V/125A

The hinge type stud terminal block lug connection is designed for conductor cross sections ranging from 1.5mm² to 35mm². It has dimensions of 50mm in length, 17mm in width, and 40.7mm in height. The terminal block is coloured grey and can handle a voltage of up to 1000V and a current of up to 125A. It features a feed through design and has an M6 stud size for mounting. It is compatible with DIN 32, DIN 35, and DIN 35-15 rails.
