Melamine Terminal Blocks

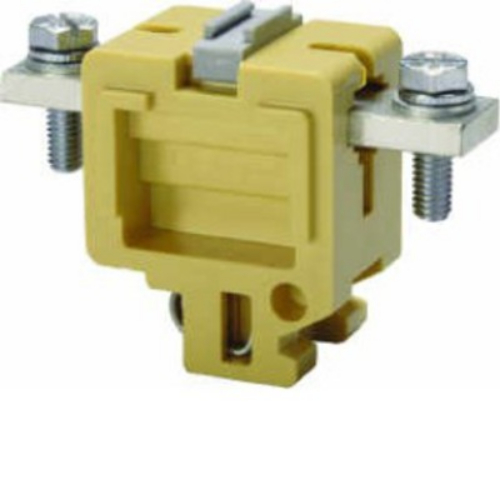

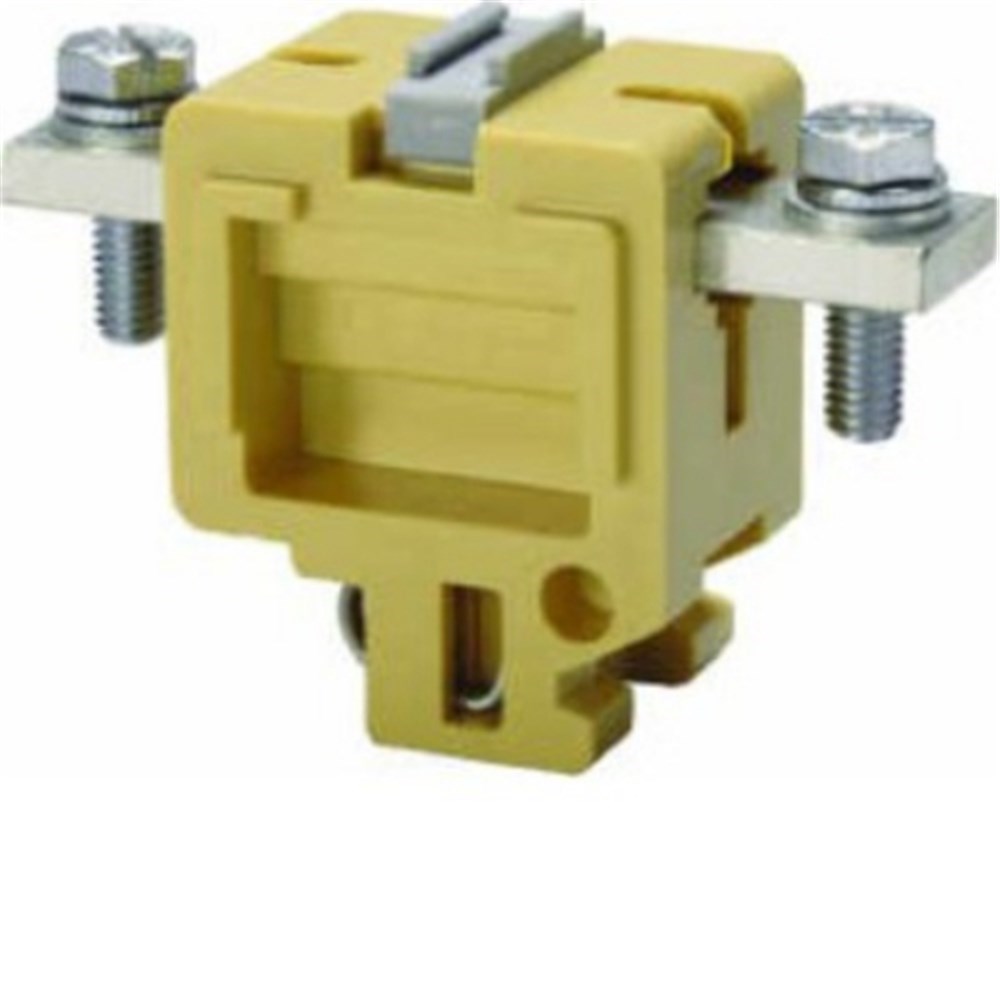

CONNECTWELL CTS35L MELAMINE TERMINAL BLOCK BUSBAR LUG CONNECTION 16 - 35mm² 1000V/150A

Product Code: CTS35L

This melamine terminal block features a busbar lug connection and is designed for stranded conductors with a cross section of 16 - 35mm². It has dimensions of 75mm in length, 28mm in width, and 52mm in height. The terminal block is coloured beige and can handle a voltage of up to 1000V and a current of up to 150A. It also offers the option for mounting on a DIN 32 rail.

Technical Specifications

Brand CONNECTWELL
Colour Beige
Conductor Cross Section - Stranded (mm²) 16 - 50
Dimensions (mm) 75L x 28W x 52H
Mounting Type DIN Rail
Rated Current (A) 150
Rated Voltage (V) 1000
Screw Size M6
Tightening Torque (Nm) 3
