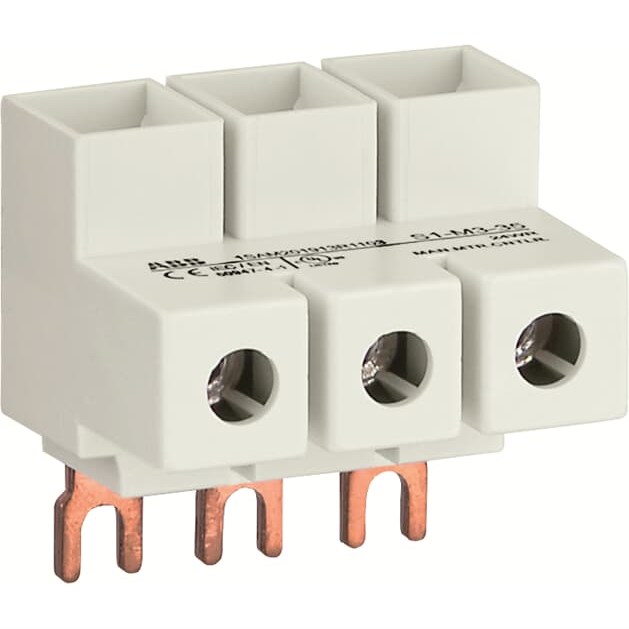

ABB S1-M3-35 POWER INFEED BLOCK S1-M3-35

Product Code: S1-M3-35

S1-M3-35 three phase feeder terminals allow the connection of bigger cable cross sections up to 35mm². They are usable with MS116 and MS132 manual motor starters. The rated current is 100 A. S1-M3-35 can also be used for line-side terminal spacing on MS132 which allows their usage in Type E / Type F applications.

Technical Specifications

No. of Inputs 3
No. of Outputs 3
Rated Operational Current (A) 100
Brand ABB
Conductor Cross Section (mm²) 10
Connection Type Screwing
Cross Section (mm²) 35mm²
Degree of Protection IP20
Dimensions (mm) 45.5W x 45.7H x 35.3D
Mounting Type Screw
No. of Poles 3
Nominal Current (A) 100
Rated Operational Voltage AC (V) 690
Rated Operational Voltage DC (V) 250
Suitable For Solid Conductors
Terminal Type Screw Terminals
