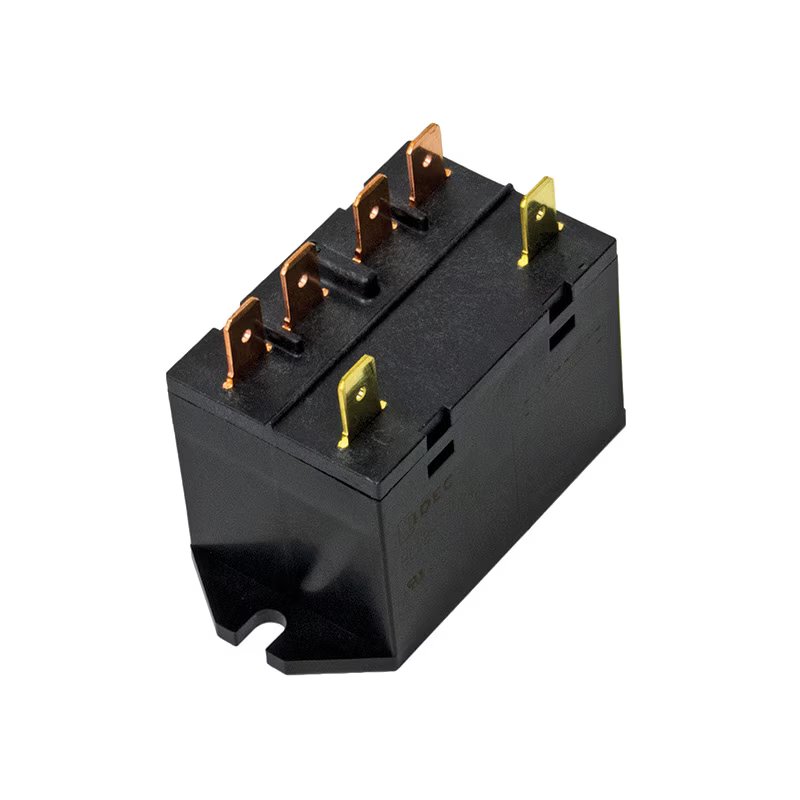

IDEC 2-POLE TAB TERMINAL FLANGE 200V AC RELAY RL2B-T-A200

Product Code: RL2B-T-A200

The IDEC RL2B-T-A200 is a robust 2-pole tab terminal flange AC relay, designed to handle 200V. It features Double Make contacts, making it suitable for motor, lighting, and heater load applications. This relay is also RoHS compliant, ensuring adherence to environmental standards. Its design ensures reliable performance in a variety of power management tasks.

Technical Specifications

Brand IDEC
Operating Time 30ms Max
Power Consumption (VA) 1.7 - 2.5
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Quick Connect Terminal
Coil Voltage AC (V) 200 - 240
Contact Material Ag Alloy
Contacts 2X (DPST, Double Make)
Degree of Protection IP40
Dimensions (mm) 33W x 67H X 35D
Maximum Switching Current (A) 25
Minimum Mechanical Life 1,000,000
Mounting Type Flange Mount
No. of Poles 2
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 55
Weight (g) 90-135
