Earth Terminal Blocks

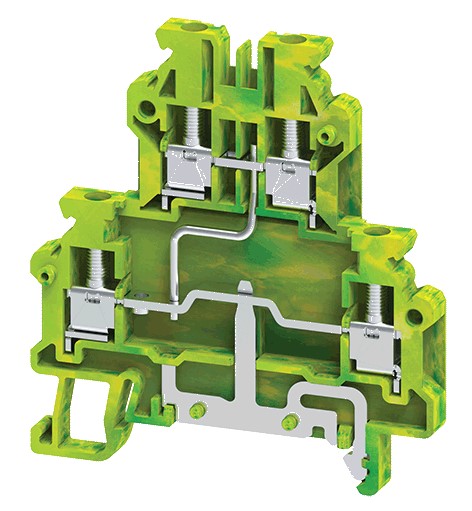

CONNECTWELL ODLG2.5A(I.S) EARTHING TERMINAL BLOCK CROSS SECTION 2.5MMSQ OFFSET STACKABLE DOUBLE LEVEL

Product Code: ODLG2.5A(I.S)

The Earthing Terminal Block is a stackable double level block with an offset design. It is suitable for wires with a size of 2.5mm² and can handle a current of up to 24A and voltage of up to 800V. The wire orientation is side entry, and it uses M3 screws for secure connections. The dimensions of the terminal block are 62mm in length, 5mm in width, and 63mm in height. It is designed to be mounted on a DIN rail.

Technical Specifications

Brand CONNECTWELL
Cable Entry Side Entry
Conductor Cross Section - Stranded (mm²) 0.2 - 2.5
Dimensions (mm) 62L X 5W X 63H
Function Double Level+Earthing
Housing Material Polyamide
Mounting Type DIN rail
Pollution Degree 3
Rated Current (A) 24
Rated Voltage (V) 800
Screw Size M3
Tightening Torque (Nm) 0.4
