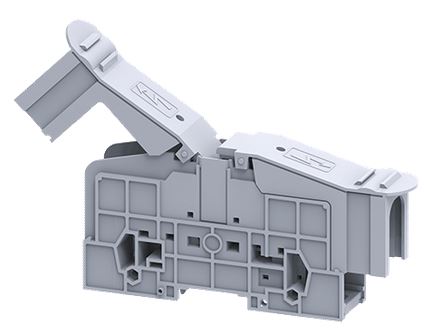

CONNECTWELL PTB70/95SH POWER TERMINAL BLOCK LUG CONNECTION WITH HINGED PROTECTIVE COVER 1.5-95mm²

Power terminal block with hinged protective cover for lug connection. Suitable for stranded conductors with a cross section of 1.5 - 95mm². The dimensions are 192mm in length, 32mm in width, and 78mm in height. It comes in the colour grey. Can handle a feed through of 1000V/232A. Mounting is possible using M8 size bolts on DIN 35 and DIN 35-15 rails.
