Power & Other Terminal Blocks

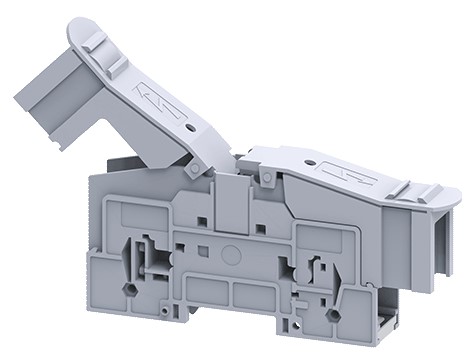

CONNECTWELL PTB35/50SH POWER TERMINAL BLOCK LUG CONNECTION WITH HINGED PROTECTIVE COVER 1.5-50mm²

Product Code: PTB35/50SH

Power terminal block with hinged protective cover for lug connection. Suitable for stranded conductors with a cross section of 1.5 - 50mm². Dimensions are 169mm in length, 25mm in width, and 66.5mm in height. Comes in the colour grey. Can handle a feed through of 1000V/150A. Mounting is possible with M6 size bolts on DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 1.5 - 50
Dimensions (mm) 169L x 25W x 66.5H
Mounting Type DIN Rail
Rated Current (A) 150
Rated Voltage (V) 1000
Screw Size M6
Tightening Torque (Nm) 3
