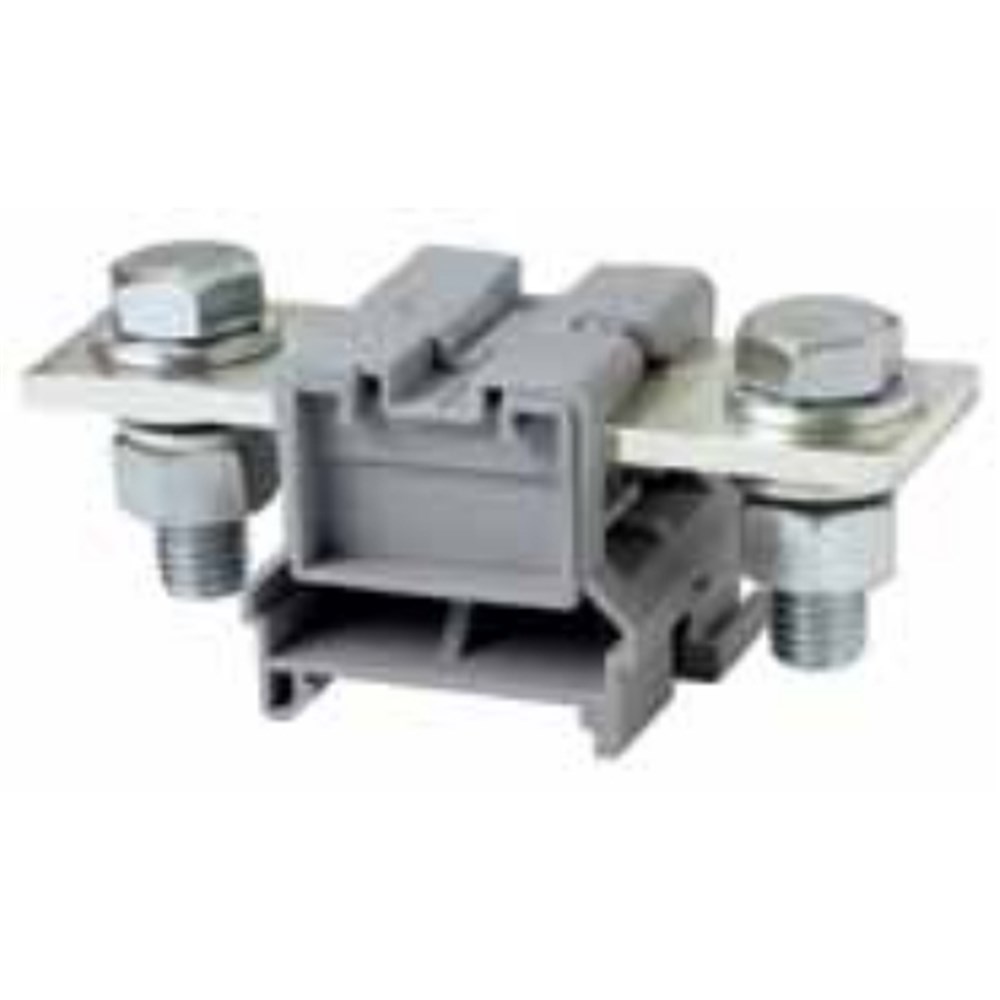

CONNECTWELL CBB150 POWER TERMINAL BLOCK LUG CONNECTION 16-150mm² 1000V/309A

Product Code: CBB150

The power terminal block features a lug connection and can accommodate stranded conductors with a cross section ranging from 16mm² to 150mm². It has dimensions of 110mm in length, 48mm in width, and 47.3mm in height. The terminal block is coloured grey and supports a feed through of up to 1000V/309A. It also offers the possibility of M12 size bolt mounting on both DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 16 - 150
Dimensions (mm) 110L x 48W x 47.3H
Mounting Type DIN Rail
Rated Current (A) 309
Rated Voltage (V) 1000
Screw Size M12
Tightening Torque (Nm) 14
