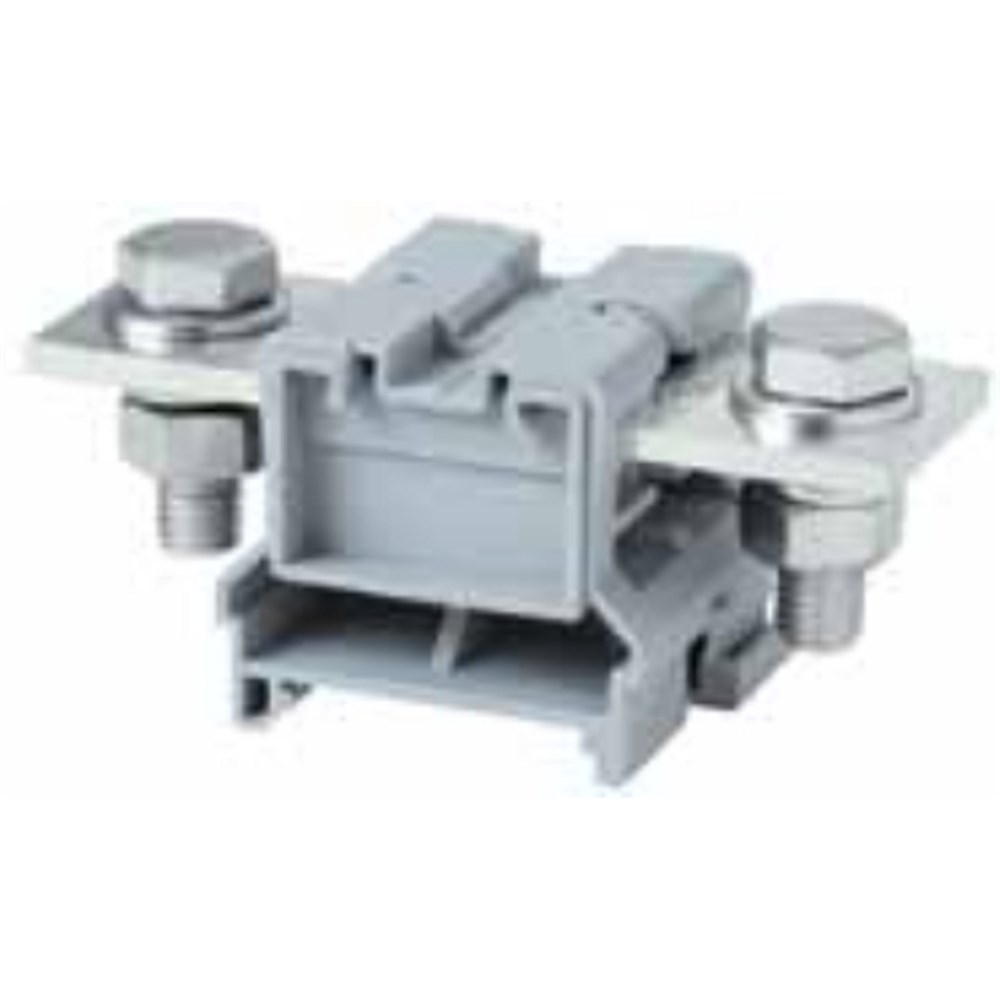

CONNECTWELL CBB120 POWER TERMINAL BLOCK LUG CONNECTION 16-120mm² 1000V/269A

Product Code: CBB120

Power terminal block with lug connection for stranded conductors ranging from 16mm² to 120mm². The dimensions of the terminal block are 100mm in length, 48mm in width, and 47.3mm in height. It is available in a grey colour. The terminal block has a feed through capacity of 1000V/269A. It can be mounted using an M10 size bolt and is compatible with both DIN 35 and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 16 - 120
Dimensions (mm) 100L x 48W x 47.3H
Mounting Type DIN Rail
Rated Current (A) 269
Rated Voltage (V) 1000
Screw Size M10
Tightening Torque (Nm) 10
