Earth Terminal Blocks

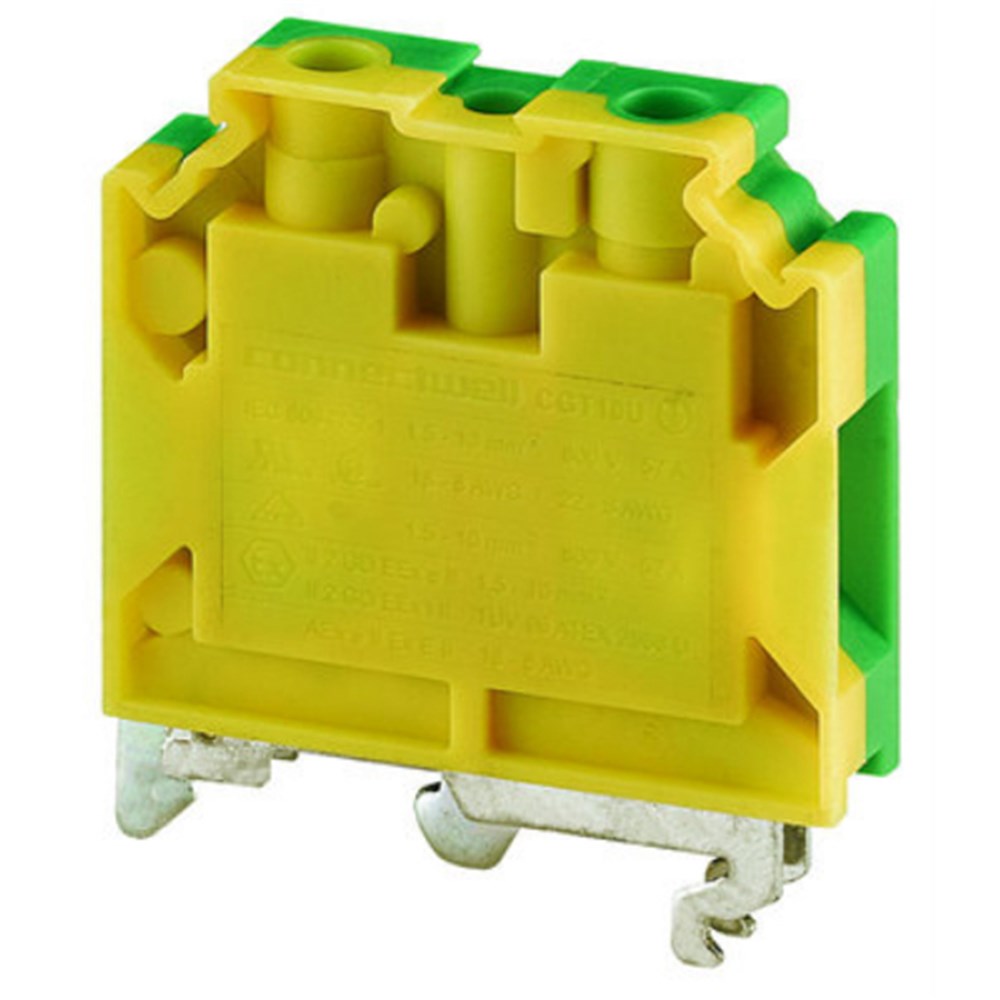

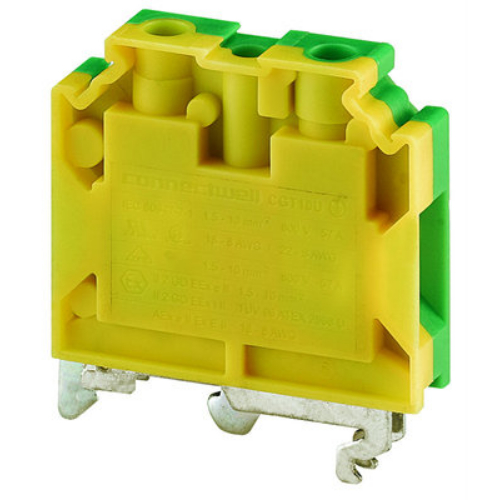

CONNECTWELL CGT10U EARTH TERMINAL BLOCK SCREW CLAMP CROSS SECTION 0.2-10.0mm²

Product Code: CGT10U

This earth terminal block has a screw clamp for securing stranded conductors with a cross section of 0.2 - 10mm². It has dimensions of 45mm in length, 10mm in width, and 51mm in height. The colour of the terminal block is green/yellow. It can be mounted on DIN 32, DIN 35, and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Green/Yellow
Conductor Cross Section - Stranded (mm²) 0.2 - 10
Dimensions (mm) 45L x 10W x 51H
Mounting Type DIN Rail
Screw Size M4
Tightening Torque (Nm) 1.2
