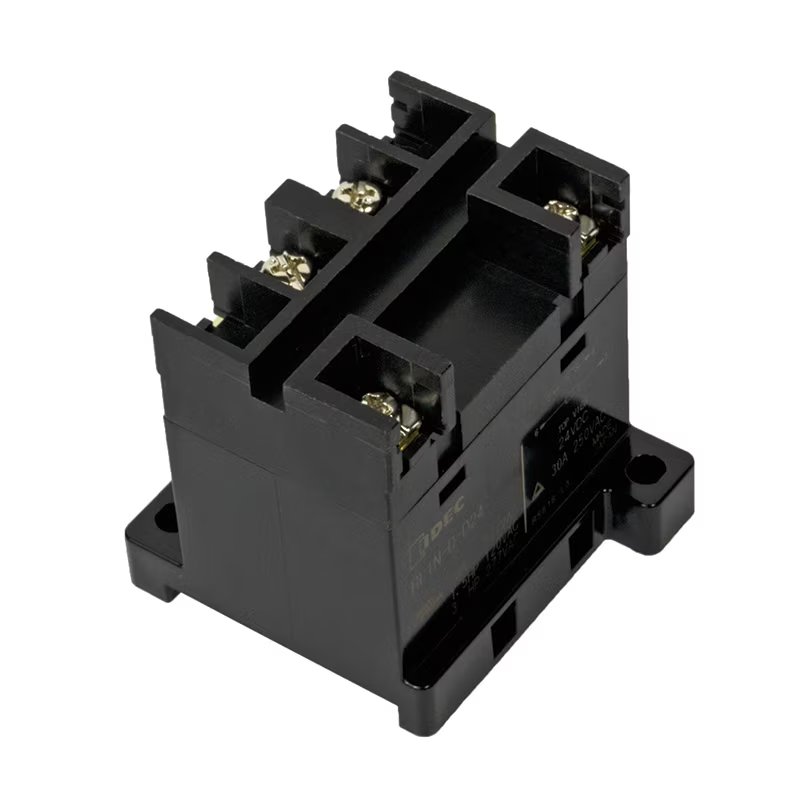

IDEC 1-POLE SCREW DIN RAIL 24V AC RELAY RL1N-D-A24

Product Code: RL1N-D-A24

The IDEC RL1N-D-A24 is a 1-pole screw DIN rail relay designed for controlling motor, lighting, and heater loads. It features Double Make contacts for reliable switching performance. This 24V AC relay is RoHS compliant, ensuring adherence to environmental standards. Its design facilitates easy mounting on a DIN rail, making it suitable for streamlined installation in various industrial applications.

Technical Specifications

Brand IDEC
Operating Time 30ms Max
Power Consumption (VA) 1.7 - 2.5
Resistance to Shock (m/s²) 1000
Resistance to Vibrations 10 to 55Hz
Terminal Shape Screw Terminal
Coil Voltage AC (V) 24
Contact Material Ag Alloy
Contacts 1X (SPST, Double Make)
Degree of Protection IP40
Dimensions (mm) 50W x 54H x 53.4D
Maximum Switching Current (A) 30
Minimum Mechanical Life 1,000,000
Mounting Type DIN Rail Mount with Panel Mount Tabs
No. of Poles 1
Operating Humidity 5 to 85%
Operational Temperature Range (°C) -25 to 55
Weight (g) 90-135
