Accuracy Class	1
Maximum Active Current (A)	25
Measurement Category	CAT III (EN 61010-1)
Minimum Active Current (mA)	250
Number of Display Digits	5 Digits + 1 Decimal
Power Consumption (VA)	Voltage Circuit: 7.6
Reference Active Current (A)	5
Voltage Variation	-20% to +15% of Reference Voltage
Brand	ORBIS
Ambient Temperature Range (°C)	-20 to 50
Connection Type	Screw
Degree of Protection	IP66
Dimensions (mm)	18.3W x 88H x 65.5D
Maximum Current (A)	25
Minimum Operational Voltage AC (V)	115
Mounting Type	DIN rail
No. of Modules	1
Nominal Voltage AC (V)	230
Operational Temperature Range (°C)	-20 to +50
Power Consumption (W)	Voltage Circuit: 0.7 Current Circuit: 0.2
Rated Frequency (Hz)	50/60
Rated Operational Voltage (V)	230
Reference No.	OB701000
Standards and Approvals	EN 61010-1:2011, EN 62052-11:2004, EN 62053-21:2003
Storage Temperature Range (°C)	-25 to 70

Power & Multifunction Meters

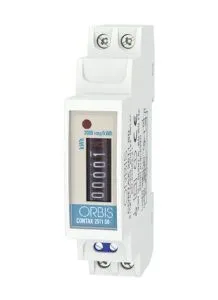

ORBIS 1 PHASE, 25A, 230VAC KWH METERCLASS 1, DIRECT CONNECT1 MODULE WIDE, DIN RAIL MOUNT CONTAX2511S0-230
