CONNECTWELL CT TEST LINK FOR 1 CT CROSS SECTION 1.5-10mm² & 160V/10A

Product Code: CT TEST LINK

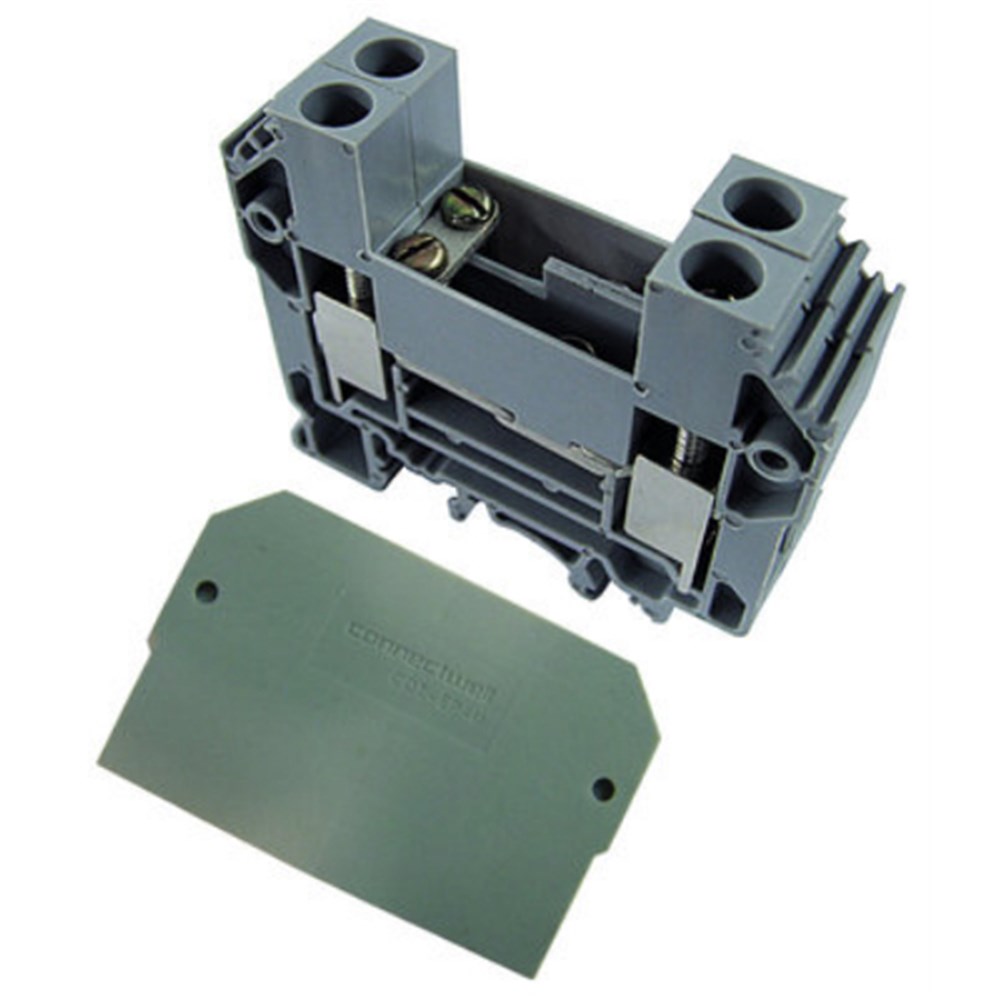

The Current Transformer (CT) test link 1 is designed for CT conductor cross sections ranging from 1.5mm² to 10mm². It has dimensions of 63mm in length, 19mm in width, and 58.7mm in height. The colour of the CT test link is grey. It operates at a voltage of 160V and a current of 10A. The kit includes one CDTTUSH terminal and one EPCDTTU endplate.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 1.5 - 6
Dimensions (mm) 63L x 19W x 58.7H
Mounting Type DIN Rail
Rated Current (A) 10
Rated Voltage (V) 160
Screw Size M3.5
Tightening Torque (Nm) 1.2
