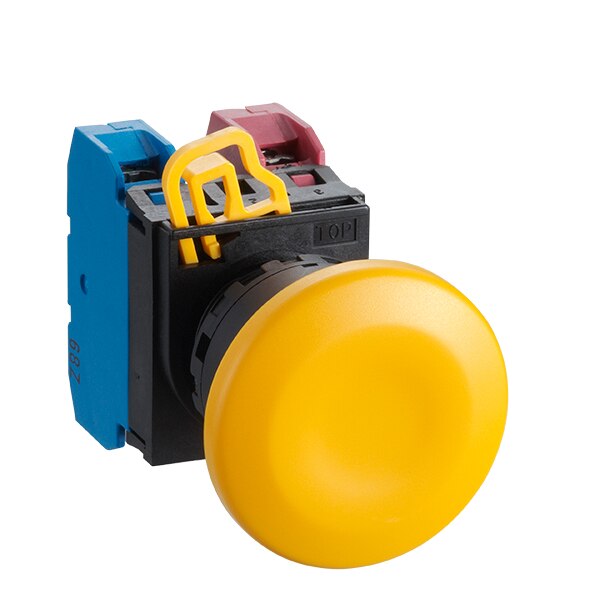

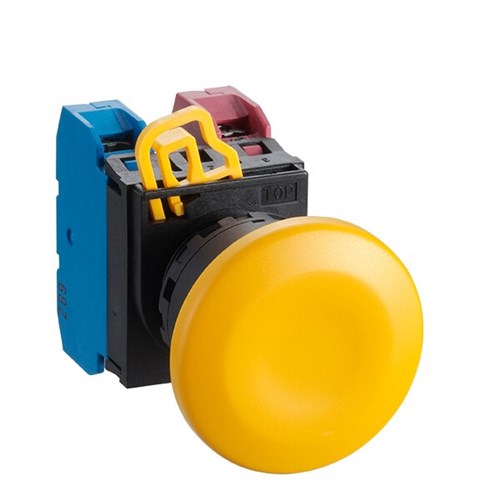

<p>The YW Series Pushbutton is a robust and reliable component designed for industrial and commercial applications where performance and durability are paramount. This non-illuminated pushbutton features a mushroom actuator type, providing an easy-to-use interface with a maintained function that ensures operations remain consistent until reset. The release method is straightforward, utilizing a pushlock pull/turn reset mechanism, adding to its user-friendly design.</p><p>With dimensions of 41.4 mm in both width and height, and a depth of 66.3 mm, this pushbutton is compact yet substantial enough to handle demanding environments. It operates efficiently within temperatures ranging from -20&#176;C to 55&#176;C, making it suitable for various operational settings. Additionally, the storage temperature range extends from -40&#176;C to 85&#176;C.</p><p>The product boasts an IP65 degree of protection at the front, ensuring resistance against dust ingress and water jets from any direction—a vital feature for maintaining functionality in challenging conditions. The terminal side offers an IP20 rating.</p><p>This pushbutton meets rigorous standards with certifications including cULus listing, CE marking, UKCA certification, and CCC certification—demonstrating compliance with international safety and quality regulations.</p><p>Engineered for resilience under physical stressors, it withstands vibration frequencies between 5-55 Hz and shock resistance up to 10 g/ms. Its mechanical life expectancy reaches up to 0.25 million operations for single contact blocks or 0.1 million operations for double contact blocks—providing long-term reliability.</p><p>Equipped with a screw terminal type that facilitates secure connections, the rated insulation voltage stands at an impressive 600 V while supporting a rated continuous current of up to 10 A. Insulation resistance is equally commendable at 100 MOhm.</p><p>The button itself measures a diameter of 40 mm with matching cutout size specifications—ensuring compatibility with standard installations—and comes in classic black color complemented by durable plastic bezel material.</p><p>Constructed from silver contact material configured as one normally closed (1NC) contact configuration enhances conductivity while maintaining safety protocols during operation cycles across humidity levels ranging from 45% to 85%.</p><p>Overall this YW Series Pushbutton integrates seamlessly into existing systems offering dependable performance backed by industry-standard approvals without compromising on essential technical requirements needed within diverse application scenarios across Australia’s varied industrial landscapes.</p>
