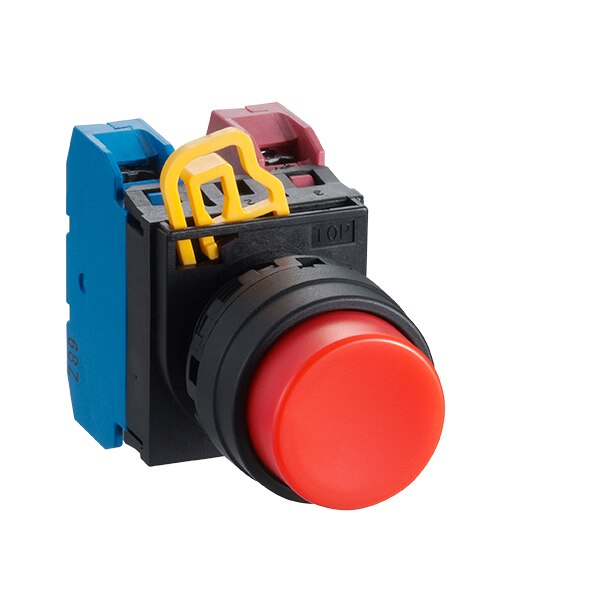

<p>When it comes to choosing a reliable and robust pushbutton for industrial or commercial applications, the YW Series Pushbutton stands out as a solid choice. This non-illuminated pushbutton is designed with practicality and durability in mind, making it suitable for various environments where dependable performance is paramount.</p><p>The YW Series Pushbutton features a compact design with dimensions of 30 mm in width, 41.4 mm in height, and 64.8 mm in depth. It fits comfortably into standard panel cutouts with its 22 mm diameter requirement. The actuator is extended for easy operation, ensuring that users can engage the button effortlessly even when wearing gloves—a common scenario in industrial settings.</p><p>Engineered to withstand harsh conditions, this pushbutton operates efficiently within a temperature range of -20 to 55 degrees Celsius and can be stored safely between -40 to 85 degrees Celsius. Its IP65-rated front ensures protection against dust and low-pressure water jets from any direction, while the IP20 rating on the terminal side provides basic protection against touch.</p><p>In terms of electrical specifications, the pushbutton offers a rated insulation voltage of 600 V and supports a rated continuous current of up to 10 A. The contact configuration includes one normally closed (1NC) contact made from silver material known for its excellent conductivity and resistance to tarnishing.</p><p>The mechanical life expectancy is impressive; single contact blocks can handle up to 0.25 million operations while double contact blocks manage up to 0.1 million operations before requiring maintenance or replacement—indicating long-term reliability under frequent use.</p><p>For those concerned about safety standards and certifications, this pushbutton meets multiple international approvals: cULus listed, CE marked, UKCA certified, and CCC certified—ensuring compliance with global safety norms.</p><p>Additionally, it boasts vibration resistance between frequencies of 5-55 Hz and shock resistance rated at 10 g/ms—making it resilient against environmental vibrations or impacts typically encountered in busy industrial settings.</p><p>The green button color not only aids visibility but also aligns well with conventional signaling practices where green often denotes &#39;start&#39; or &#39;go&#39;. The function is maintained with a release method featuring both pushlock pull/turn reset mechanisms—providing flexibility depending on user preference or operational requirements.</p><p>Constructed with plastic bezel material for durability without added weight—this component maintains an insulation resistance of over 100 MOhm which further enhances its safety profile by minimizing potential leakage currents during operation.</p><p>Overall humidity tolerance ranges from 45% to 85%, allowing it to perform reliably across diverse climatic conditions without degradation in functionality or lifespan—all these factors combined make this product an excellent choice for professionals seeking dependable solutions tailored specifically towards rigorous industrial applications within Australia’s demanding sectors.</p>
