W66 Industrial IP66 Switchgear

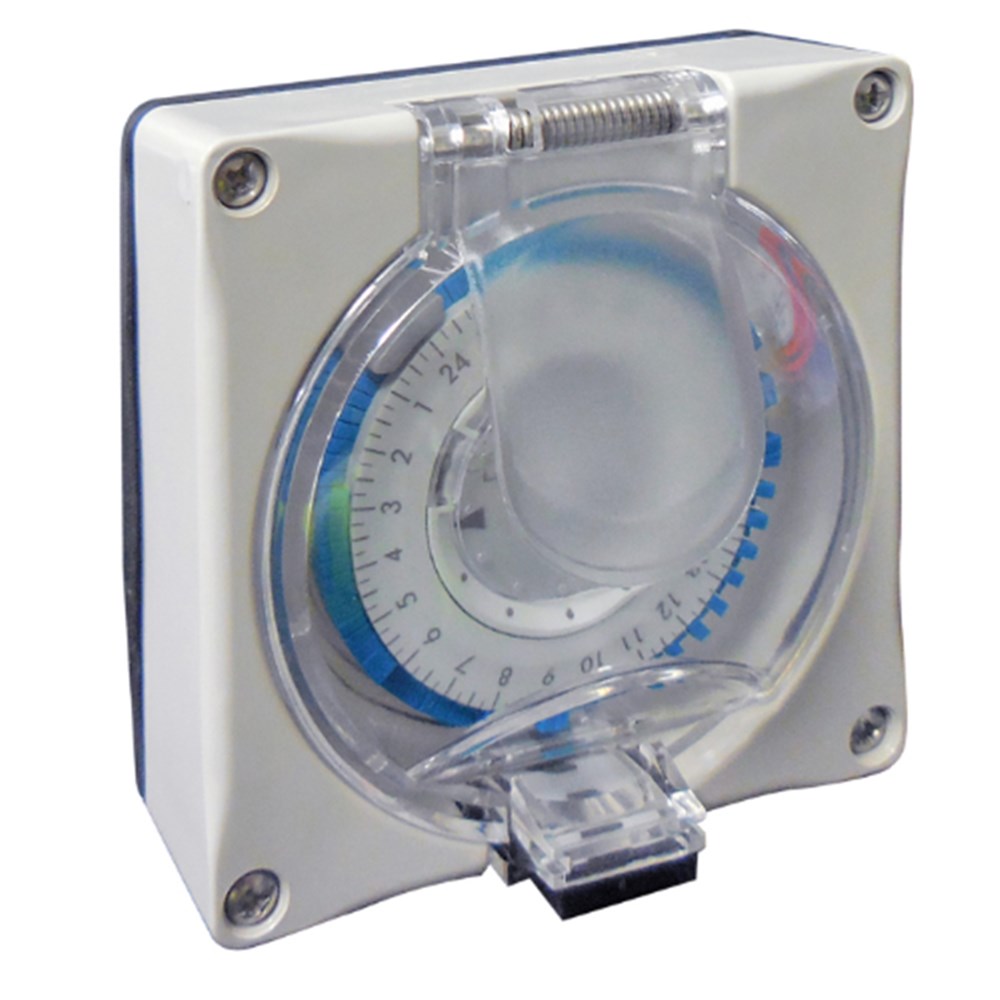

IPD ANALOGUE TIME CLOCK WITHOUT BASE 16A 230V, IP66 W66ATCLB

Product Code: W66ATCLB

An analogue time clock without a base, with a 16A 230V rating and an IP66 protection rating. It has a battery back-up that lasts for 100 hours and a minimum switching time of 15 minutes. The contacts include 1 changeover contact and 2 M25 + 1 M32 gland entries.

Technical Specifications

Brand IPD
Back Box Included No
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 107D
Gland Entries 2 x M25 + 1 x M32
Material Polycarbonate
Maximum Cable Cross Section (mm²) 4
No. of Poles 1
Rated Current (A) 16
Rated Voltage AC/DC (V) 230

Documents
