W66 Industrial IP66 Switchgear

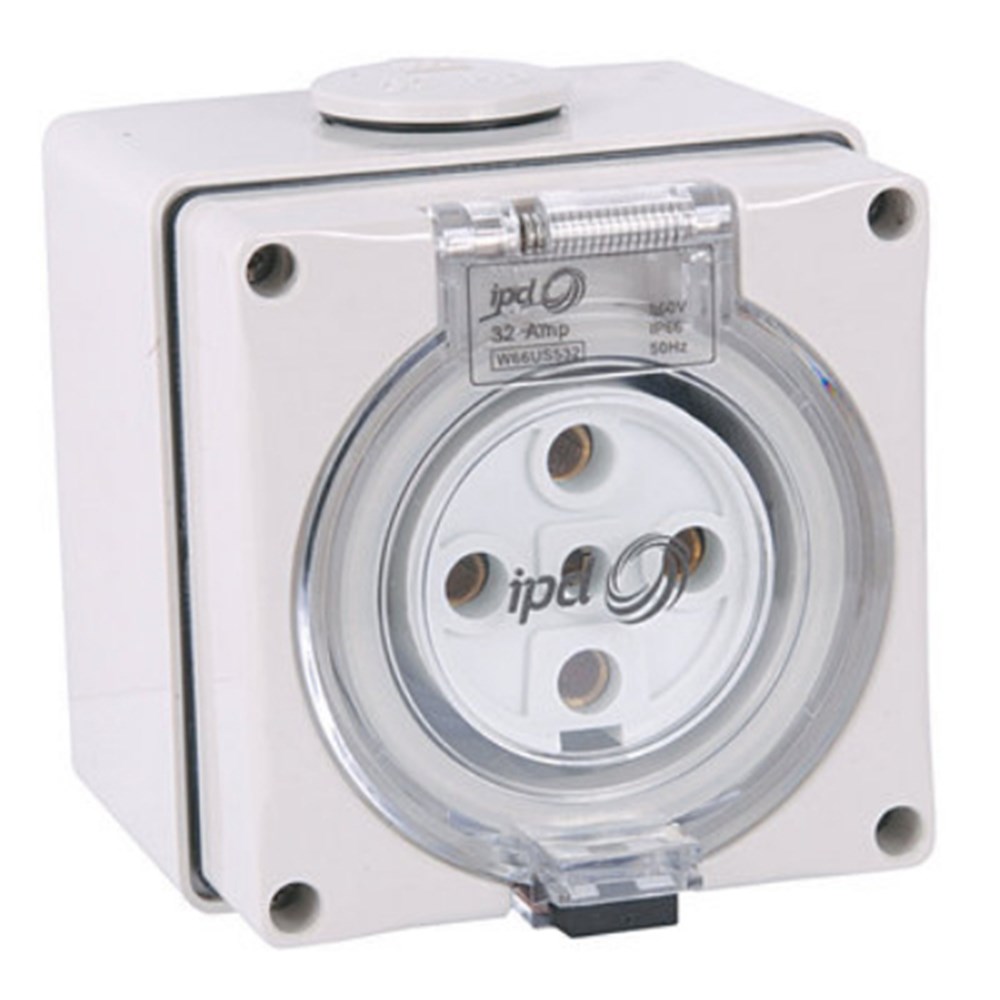

IPD UNSWITCHED SOCKET 3 PHASE 5 ROUND PINS 32A 500V, IP66 W66US532

Product Code: W66US532

Three phase unswitched socket with 5 round pins and base included, IP66. Current rating at 32A, voltage rating at 500V. Max cable area 16mm². Use plug W66SP532 or W66AP532.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 91D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 5
Pin Type Round
Rated Current (A) 32
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
