W66 Industrial IP66 Switchgear

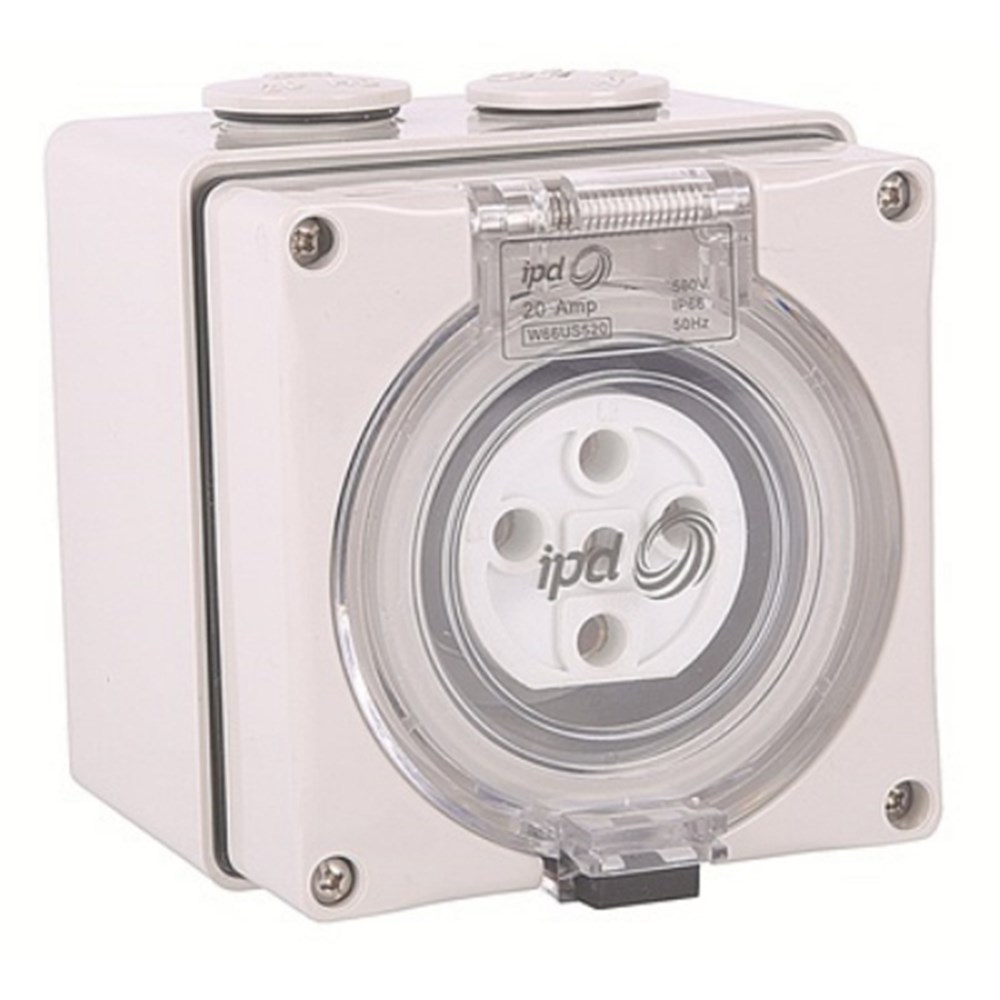

IPD UNSWITCHED SOCKET 3 PHASE 4 ROUND PINS 20A 500V, IP66 W66US420

Product Code: W66US420

Three phase unswitched socket with 4 round pins and base included, IP66. Current rating at 20A, voltage rating at 500V. Max cable area 6mm². Use plug W66SP420 or W66AP420.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 101H x 91D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 4
Pin Type Round
Rated Current (A) 20
Rated Voltage AC/DC (V) 500
Standards and Approvals AS3123
