Brand	DEHN
Clamping Range (mm)	30
Maximum Output Short-circuit Current (A)	33504 (0.5s), 23700 (1s)
Ambient Temperature Range (°C)	–25 - +55
Connection Type	Fixed ball point 25/30 mm
Dimensions (mm)	40(W) x231(H) x74(D)
Material	clamp body & shaft - Copper alloy/gal Sn pressure plate - St/gal Zn
Reference No.	774330
Standards and Approvals	EN/IEC 61230 (DIN VDE 0683-100)
Suitable For	Earthing
Type	Short-Circuiting Devices
Weight (kg)	0.941
Wire Cross Section (mm²)	20 - 120

Lightning & Surge Protection

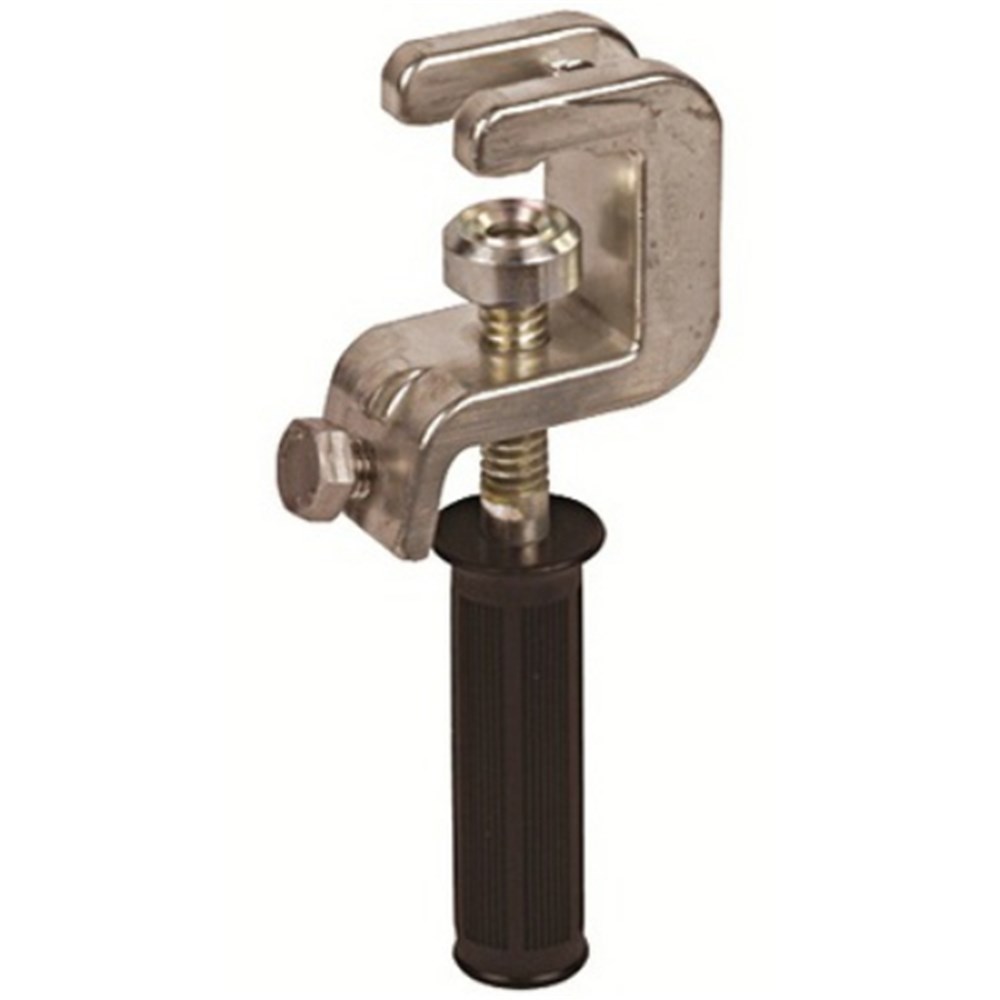

DEHN UNIVERSAL EARTHING CLAMP K 30T 18mm WITH HANDLE UEK30HG
