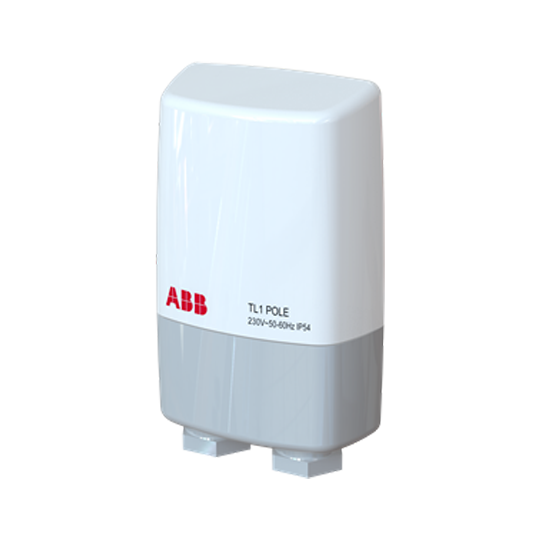

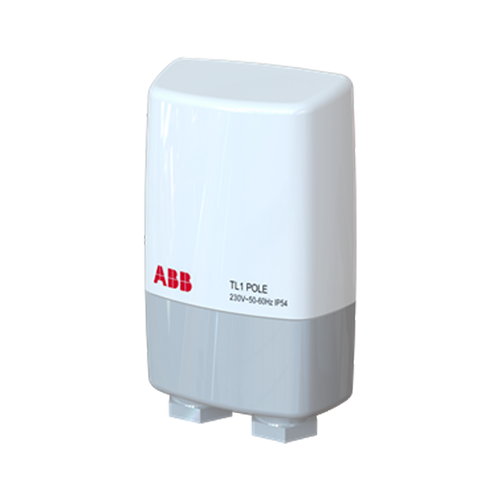

ABB TWILIGHT SWITCH POLE/WALL MOUNT WITH SENSOR TL1 POLE

Product Code: TL1 POLE

This analog time switch is designed for pole or wall mounting. It operates with a supply voltage of 110/230V AC. The switch features a 1NO polarized contact and uses a delay ON/OFF switching type. It has IP54 protection, making it resistant to dust and water. The switch also includes red and green LEDs to indicate the switching status. With a width of 17.5mm, it can fit into 1 module space.

Technical Specifications

LED Colour Red/Green
Illumination Colour White
No. of Modules - Width 17.5 mm 1
Brand ABB
Mounting Type Wall
Operational Temperature Range (°C) -40 to +70
Storage Temperature (°C) -50 to +80
Channels 1
Function Delay ON/OFF
Illuminance (lx) 2-200
Power Loss (W) 0.8
Rated Frequency (Hz) 50/60
Terminal Type Screw
Dimensions (mm) 35 x 117 x 70
Universal Supply Voltage AC (V) 110/230
Degree of Protection IP54/IP20
Standards and Approvals EN 60669-1, EN 60662-2-1, EN 60730-1
