Brand	ABB
Accuracy	±3%
Auxiliary Contacts	1 CO (SPDT)
Communication Interface	Modbus RTU
Contact Material	Gold-Plated
Current Input Sensitivity (V/kA)	0.361
Current Sensor Inputs	Phases (L1-L3) - 3, Neutral -1
Current Warning Range (A)	250-12000
Degree of Protection	IP20
Dimensions (mm)	155.5W X 141.1H X 63.8D
Inputs	Current signal input optical (daisy chain) -1
Mounting Type	Wall mounted or DIN
Nominal Current (A)	250-4000
Operational Temperature Range (°C)	-25 to +70
Outputs	Current signal output optical - 2, Signal relay (for over current signal) -1
Over Current Setting (A)	250-12000
Rated Impulse Withstand Voltage (kV)	4
Rated Insulation Voltage (V)	250
Rated Operational Voltage AC (V)	24-240
Rated Operational Voltage DC (V)	24-250
Suitable For	TVOC-2
Terminal Type	Screw Terminals
Weight (kg)	0.42

ARC Monitor

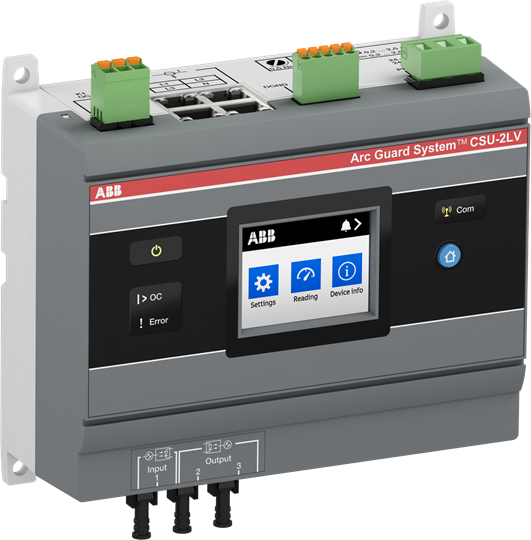

ABB CSU-2LV LOW VOLTAGE CURRENT SENSING UNIT
