Product Code: SLT1-36-M20

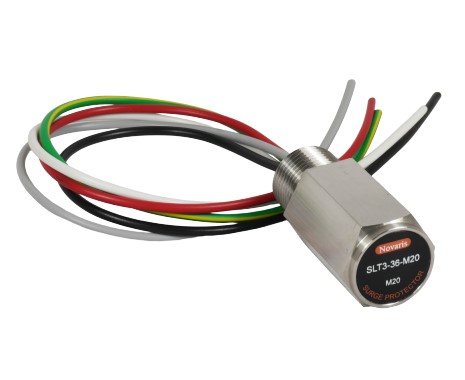

The Threaded Signal Surge Protector is designed for twisted pair signaling schemes and is ideal for installation directly at field equipment. It comes in a pair and has a maximum continuous operating voltage of 36VDC and 30VAC. The maximum discharge current is 5 kA per line at 8/20ms (10 kA common mode). The voltage protection levels are below 75V (L-L) and below 350V (L-PE) at 1 kV/ms. It has a shunt connection and an IP67 rating when installed. The thread size options are M20 x 1.5 or 1/2" NTP.

No. of Pairs	1
Voltage Protection Level (1kV/µs) - Up (kV)	0.075 (L-L), 0.350 (L-PE)
Brand	NOVARIS
Connection Type	Shunt
Degree of Protection	IP67
Maximum Continuous Operating Voltage MCOV AC (V)	30
Maximum Continuous Operating Voltage MCOV DC (V)	36
Maximum Discharge Current (8/20µs) - Imax (kA)	5 (per line), 10 (common mode)
Mounting Type	Threaded
Operational Temperature Range (°C)	-40 to 85
Standards and Approvals	IEC 61643-21, AS/NZS 1768, UL 1449 & UL 497B, ITU-T K.44
