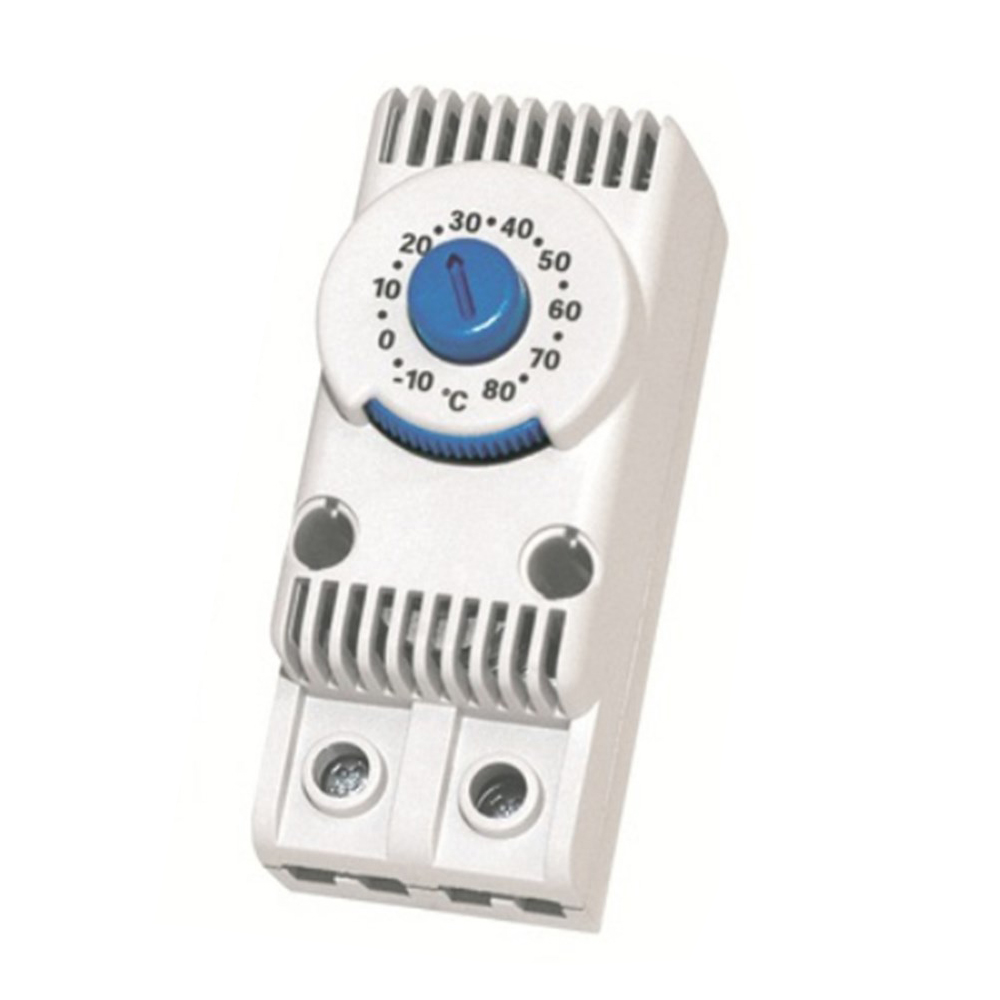

FANDIS TRT-10A230V-NO THERMOSTAT 110-250V AC WITH 1 NO CONT.

Product Code: TRT-10A230V-NO

Thermostat with 110-250V AC power supply, 1 normally open contact, and bi-metallic sensing element. It is grey in colour (RAL7035) and has an IP20 rating. The temperature setting range is -10°C to 80°C with a setting resolution of 5°C.

Technical Specifications

Brand FANDIS
Approvals CE, cURus, UKCA
Auxiliary Contacts 1NO
Colour Grey, RAL 7035
Connection Type Terminal
Degree of Protection IP20
Dimensions (mm) 68H x 29W x 45D
Fixing Type Snap On
Humidity 90% RH (Max)
Material PA66 UL94 V-0 (Casing)
Mounting Type DIN rail
Operational Temperature Range (°C) -10 to +80
Rated Voltage AC (V) 110-250
Rated Voltage DC (V) 60
Sensor Type Bi-Metal
Storage Temperature (°C) -40 to +90
Wire Cross Section (mm²) 0.75-2.5
