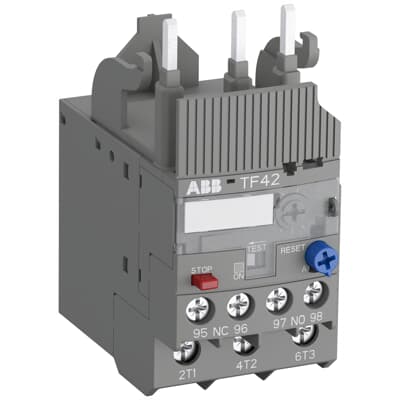

<p>When selecting a thermal overload relay for your industrial or commercial application, understanding the technical specifications is crucial. This particular model offers a robust blend of features that cater to various operational needs, making it an ideal choice for professionals seeking reliability and efficiency.</p><p>Designed to operate at a rated voltage of 690 VAC and a current of 0.55 A, this thermal overload relay is well-suited for environments requiring stable performance under varying electrical conditions. Its compatibility with both 50 Hz and 60 Hz frequencies ensures versatility across different systems.</p><p>The product boasts a power loss of just 1.1 W, reflecting its energy-efficient design. With an impressive rated impulse withstand voltage of 6 kV and insulation voltage also rated at 690 V, it provides excellent protection against electrical surges and insulation failures.</p><p>The contact configuration includes one normally closed (NC) and one normally open (NO) contact, offering flexibility in circuit integration. The setting range between 5.7-7.6 A allows for precise adjustments tailored to specific load requirements, while the trip class is set at Class 10—indicative of its quick response time in overload situations.</p><p>In terms of physical dimensions, the relay measures 45 mm in width, 88.3 mm in height, and has a depth of 70.5 mm—compact enough to integrate seamlessly into existing setups without demanding excessive space.</p><p>Operational temperature ranges from -25 to +60 degrees Celsius ensure reliable function even in challenging environmental conditions typical within Australia’s varied climate zones. For storage purposes, it can withstand temperatures as low as -50 degrees Celsius up to +80 degrees Celsius without compromising integrity.</p><p>Installation is straightforward with direct mounting capabilities designed for use alongside AF09-AF38 systems—a testament to its compatibility with other components you might already have in place.</p><p>Adhering strictly to international standards such as IEC/EN 60947-1/-4-1/-5-1 and UL certifications ensures safety compliance across multiple jurisdictions including rigorous Australian standards.</p><p>For enhanced safety during operation, this relay provides IP10/IP20 protection levels against ingress by solid objects larger than fingers or tools respectively while maintaining IP3 pollution degree rating suitable for industrial settings prone to dust or moisture exposure.</p><p>Short circuit protection is facilitated through devices rated at up to 35 A using gG type fuses which are widely recognized within industry circles due their reliability under fault conditions ensuring minimal downtime during unexpected events</p><p>Electrical connections utilize screw terminals providing secure attachment points reducing risk associated with loose wiring common among high vibration applications</p><p>An automatic reset function further simplifies maintenance tasks by restoring normal operations post-trip event minimizing manual intervention thus improving system uptime significantly</p><p>This comprehensive suite makes this thermal overload relay not just another component but rather an integral part contributing towards overall system resilience Manufacturer Part Number: [not included per instructions].</p>
