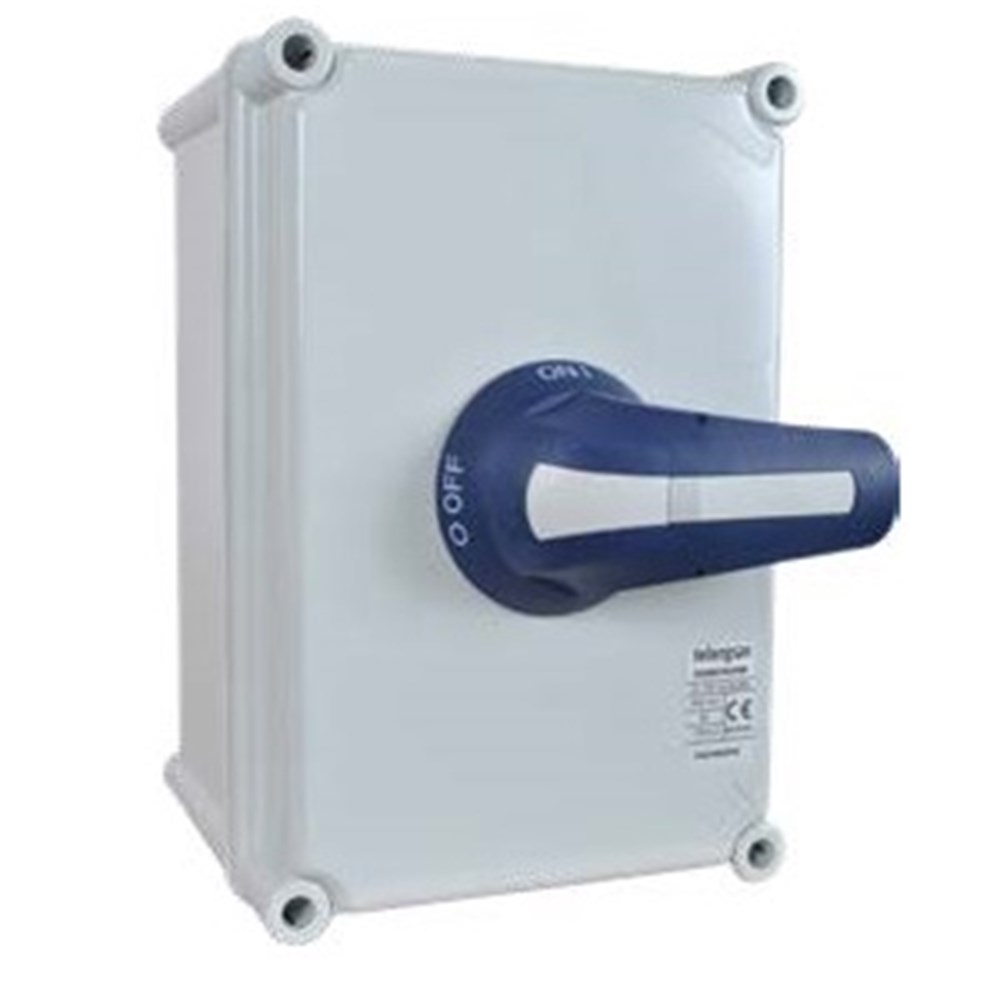

TELERGON TLB2503P/E REINFORCED POLYESTER ENCLOSED LOAD BREAK SWITCH 250A 3P 138kW

Product Code: TLB2503P/E

TLB series is a reinforced polyester enclosed load break switch with line and load side terminal covers. It features an opaque liftoff lid. This switch is designed for 3-phase applications with AC21A(690V) rated at 250A and AC23A(690V) rated at 138kW. The cable size supported is 150mm². With an IP65 rating, it offers protection against dust and water ingress. The dimensions of this switch are 270mm width, 360mm height, and 170mm depth.

Technical Specifications

Operational Current AC-21A @ 690V (A) 250
Operational Power AC-23A @ 690V (kW) 138
Brand TELERGON
Cable Cross Section (mm²) 150
Degree of Protection IP65
Dimensions (mm) 270W X 360H X 170D
Material Polyester
No. of Poles 3P
Operational Current AC-23A @ 690V (A) 250
Poles 3P
Rated Operational Current AC-21A 690V (A) 250
Rated Operational Current AC-23A 690V (A) 250
Rated Operational Power AC-23A 690V (kW) 138
Series TLB
Sizes (mm) 270W x 360H x 170D
