W66 Industrial IP66 Switchgear

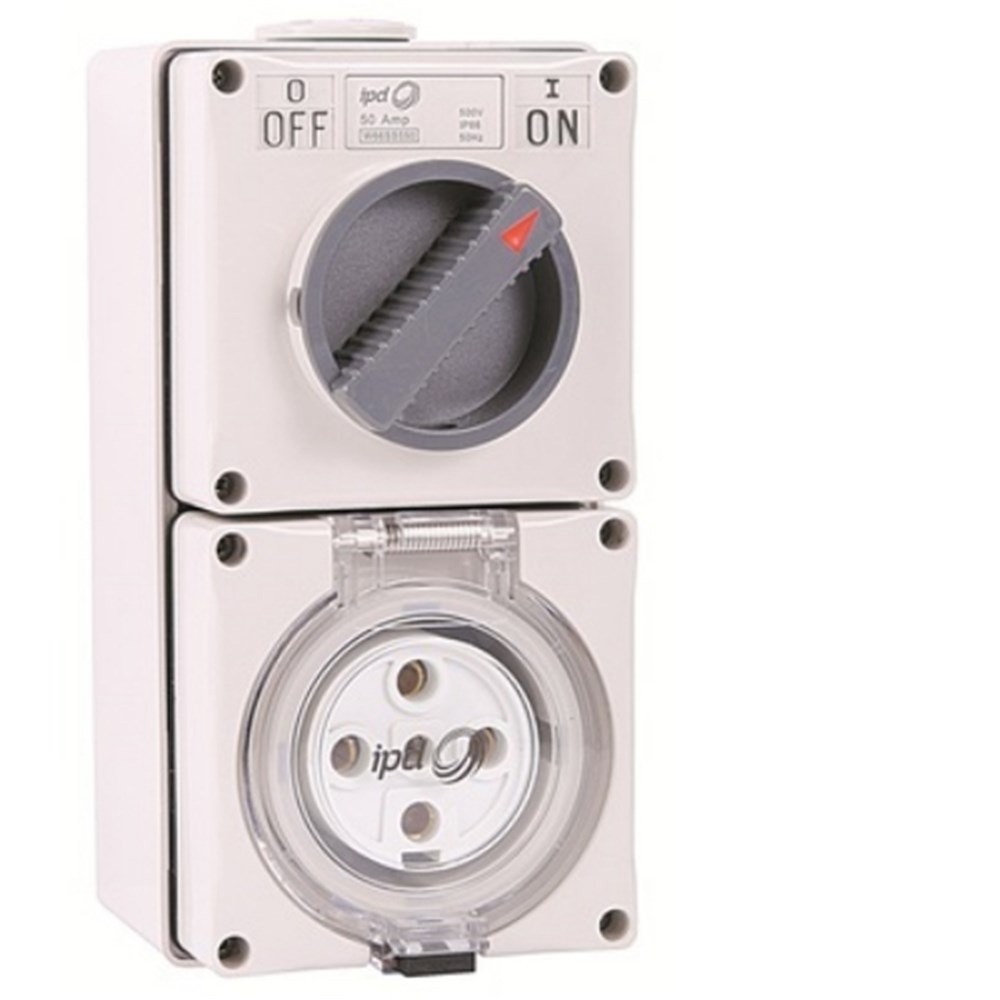

IPD SWITCHED OUTLET THREE PHASE 5 ROUND PINS 50A 500V, IP66 W66SS550

Product Code: W66SS550

This three-phase switched outlet features 5 round pins and a full-size back box. It has an IP66 rating, making it highly resistant to dust and water. The current rating is 50A, with a voltage rating of 500V. It can accommodate cables with a maximum area of 16mm². The outlet has 1 x M32 and 2 x M25 entries for easy installation. Made from polycarbonate UV stabilised material, it is durable and long-lasting. The stainless steel 316 fixings ensure secure fastening.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 197H x 110D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 16
No. of Phases 3
No. of Pins 5
No. of Poles 3
Pin Type Round
Rated Current (A) 50
Rated Voltage AC/DC (V) 500
Standards and Approvals IEC947-3/AS3133
