W66 Industrial IP66 Switchgear

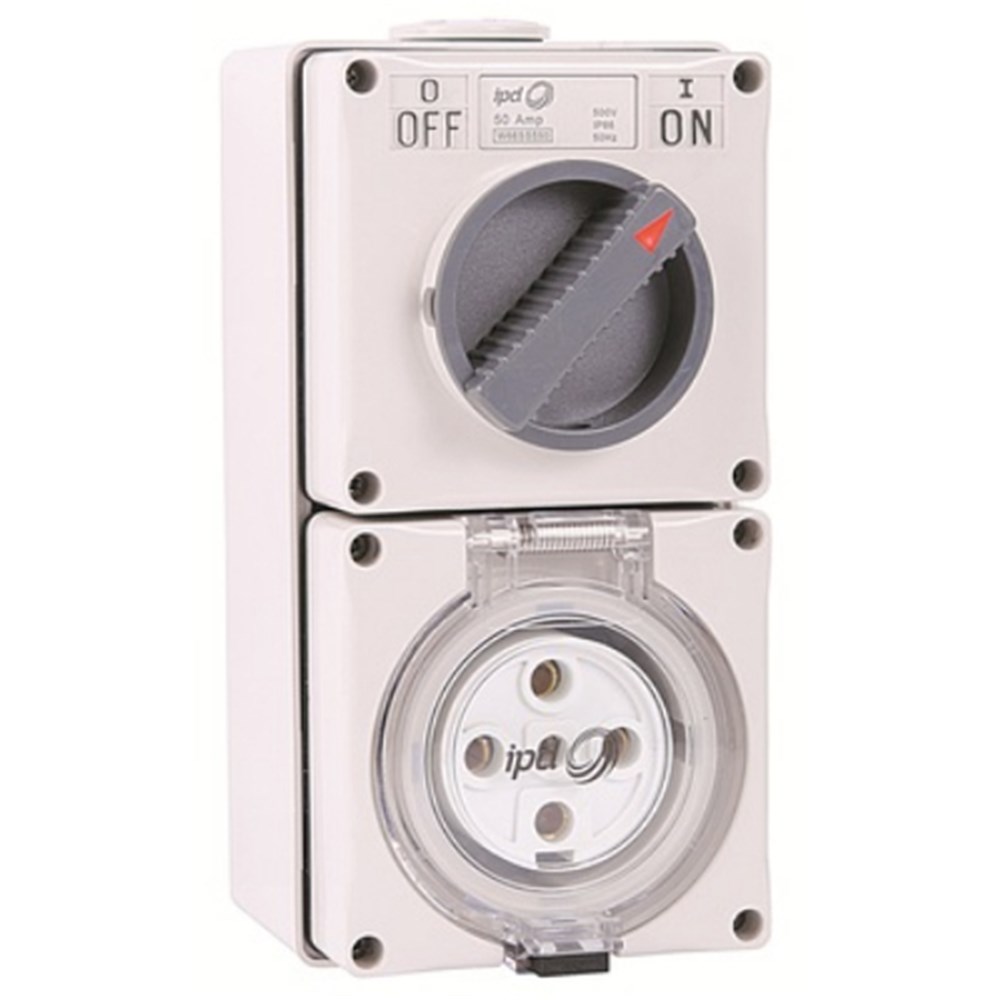

IPD SWITCHED OUTLET THREE PHASE 5 ROUND PINS 20A 500V, IP66 W66SS520

Product Code: W66SS520

This three-phase switched outlet features 5 round pins and a full-size back box. It has an IP66 rating, making it highly resistant to dust and water. The current rating is 20A, with a voltage rating of 500V. The maximum cable area supported is 6mm². It has 1 x M32 and 2 x M25 entries for easy installation. Made from polycarbonate UV stabilized material, it also includes stainless steel 316 fixings for durability.

Technical Specifications

Brand IPD
Back Box Included Yes
Cover Style Light Grey
Degree of Protection IP66
Dimensions (mm) 101W x 197H x 110D
Gland Entries 1 x M32, 2 x M25
Material Polycarbonate
Maximum Cable Cross Section (mm²) 6
No. of Phases 3
No. of Pins 5
No. of Poles 3
Pin Type Round
Rated Current (A) 20
Rated Voltage AC/DC (V) 500
Standards and Approvals IEC947-3/AS3133
